AIS12F02UN024-2M
ActiveAltech Corporation

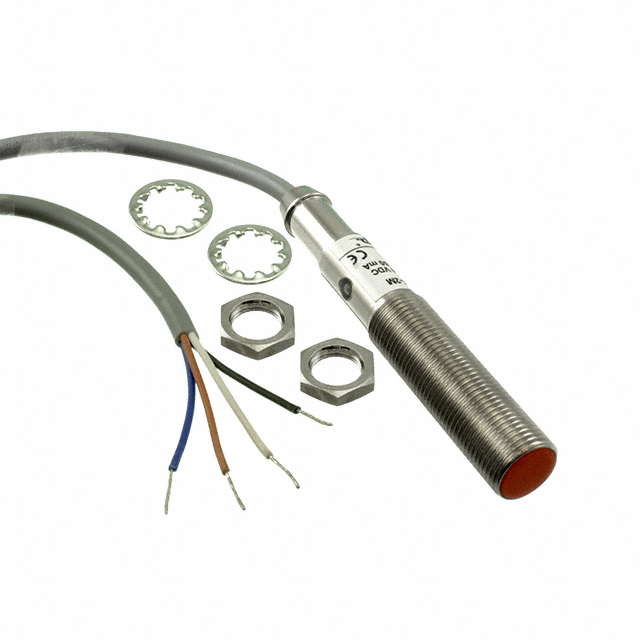

SENSOR PROX INDUCTIVE 2MM CYLIND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AIS12F02UN024-2M
ActiveAltech Corporation
SENSOR PROX INDUCTIVE 2MM CYLIND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AIS12F02UN024-2M | AIS12F02 Series |
|---|---|---|
| Indicator [custom] | LED | LED, No Indicator |
| Ingress Protection | NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4 | NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4 |
| Material - Body | Nickel-Plated Brass | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Output Type | 3-Wire, NPN-NC/NO | NPN-NO, 3-Wire, NPN-NO, PNP-NO, 3-Wire, PNP-NC/NO, 3-Wire, 3-Wire, NPN-NC/NO |
| Package / Case | Cylinder, Threaded - M12 | Cylinder, Threaded - M12 |
| Response Frequency | 1 kHz | 1 - 400 kHz |
| Sensing Distance | 0.079 in | 0.079 in |
| Sensing Distance | 2 mm | 2 mm |
| Sensor Type | Inductive | Inductive |
| Shielding | Shielded | Shielded |
| Termination Style | Cable Leads | Connector, Cable Leads |
| Voltage - Supply [Max] | 30 VDC | 30 VDC |
| Voltage - Supply [Min] | 10 VDC | 10 VDC |
AIS12F02 Series
SENSOR PROX INDUCTIVE 2MM CYLIND
| Part | Termination Style | Shielding | Material - Body | Indicator [custom] | Response Frequency | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensing Distance | Sensing Distance | Package / Case | Output Type | Ingress Protection | Sensor Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Altech Corporation AIS12F02AN024-Q65 | Connector | Shielded | Nickel-Plated Brass | LED | 1 kHz | 30 VDC | 10 VDC | 0.079 in | 2 mm | Cylinder, Threaded - M12 | NPN-NO, 3-Wire | IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 | Inductive | 70 °C | -25 °C |
Altech Corporation AIS12F02AN024-5M | Cable Leads | Shielded | No Indicator | 30 VDC | 10 VDC | Cylinder, Threaded - M12 | NPN-NO | Inductive | |||||||
Altech Corporation AIS12F02RD024-2M | Cable Leads | Shielded | Nickel-Plated Brass | LED | 40 Hz | 30 VDC | 10 VDC | 0.079 in | 2 mm | Cylinder, Threaded - M12 | NPN-NO, 3-Wire | IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 | Inductive | 70 °C | -25 °C |
Altech Corporation AIS12F02AD024-2M | Cable Leads | Shielded | Nickel-Plated Brass | LED | 400 Hz | 30 VDC | 10 VDC | 0.079 in | 2 mm | Cylinder, Threaded - M12 | PNP-NO, 3-Wire | IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 | Inductive | 70 °C | -25 °C |
Altech Corporation AIS12F02UP024-2M | Cable Leads | Shielded | Nickel-Plated Brass | LED | 1 kHz | 30 VDC | 10 VDC | 0.079 in | 2 mm | Cylinder, Threaded - M12 | PNP-NC/NO, 3-Wire | IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 | Inductive | 70 °C | -25 °C |
Altech Corporation AIS12F02UP024-Q65 | Connector | Shielded | Nickel-Plated Brass | LED | 1 kHz | 30 VDC | 10 VDC | 0.079 in | 2 mm | Cylinder, Threaded - M12 | PNP-NC/NO, 3-Wire | IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 | Inductive | 70 °C | -25 °C |
Altech Corporation AIS12F02AP024-2M | Cable Leads | Shielded | Nickel-Plated Brass | LED | 1 kHz | 30 VDC | 10 VDC | 0.079 in | 2 mm | Cylinder, Threaded - M12 | PNP-NO, 3-Wire | IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 | Inductive | 70 °C | -25 °C |
Altech Corporation AIS12F02AP024-Q65 | Connector | Shielded | Nickel-Plated Brass | LED | 1 kHz | 30 VDC | 10 VDC | 0.079 in | 2 mm | Cylinder, Threaded - M12 | PNP-NO, 3-Wire | IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 | Inductive | 70 °C | -25 °C |
Altech Corporation AIS12F02UN024-Q65 | Connector | Shielded | Nickel-Plated Brass | LED | 1 kHz | 30 VDC | 10 VDC | 0.079 in | 2 mm | Cylinder, Threaded - M12 | 3-Wire, NPN-NC/NO | IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 | Inductive | 70 °C | -25 °C |
Altech Corporation AIS12F02AN024-2M | Cable Leads | Shielded | Nickel-Plated Brass | LED | 1 kHz | 30 VDC | 10 VDC | 0.079 in | 2 mm | Cylinder, Threaded - M12 | NPN-NO, 3-Wire | IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 | Inductive | 70 °C | -25 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 60.11 | |
Description
General part information
AIS12F02 Series
SENSOR PROX INDUCTIVE 2MM CYLIND
Documents
Technical documentation and resources
