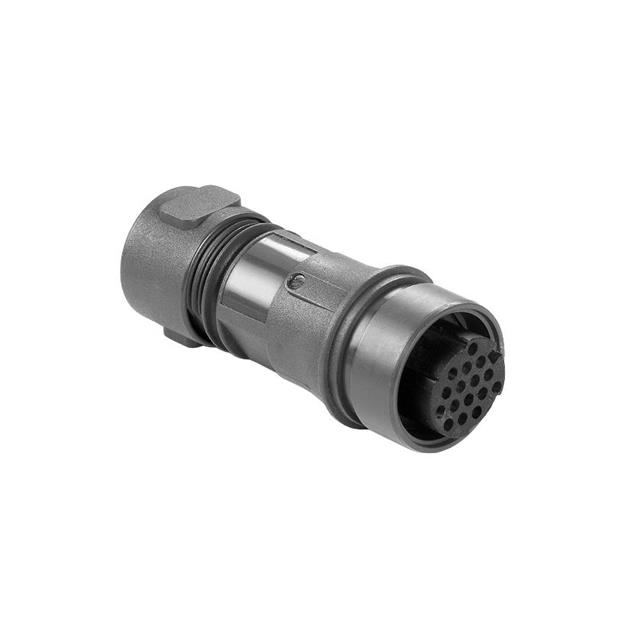

Specification	PXP6011/08P/CR/0405

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Solder Cup, Crimp
Fastening Type	Push-Twist
Features	Backshell
Housing Color	Gray
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP66
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Position Types	Power
Primary Material	Plastic
Shell Material	Halogen Free, Polycarbonate/Polybutylene Terephthalate (PBT)
Shielding	Unshielded
Type	For Male Pins

PXP6011 Series

Part	Ingress Protection Description	Ingress Protection IP Rating	Contact Shape	Shell Material	Primary Material	Contact Type	Fastening Type	Type	Note	Connector Type	Number of Positions	Position Types	Housing Color	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Mounting Type	Features	Shell Finish	Color	Cable Opening (Max)	Cable Opening (Min)	Voltage Rating	Voltage Rating (Type)	Contact Material	Current Rating	Contact Finish - Mating	Termination
BULGIN LIMITED PXM6011/02P/CR/0507	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Circular	Brass	Metal	Crimp Solder Cup	Push-Twist	For Male Pins	Contacts Not Included	Receptacle Housing	2	Power	Silver	Keyed	120 °C	-40 °C	Unshielded	Free Hanging (In-Line)	Backshell	Nickel
BULGIN LIMITED PXM6011/03P/CR/0910	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Circular	Brass	Metal	Crimp Solder Cup	Push-Twist	For Male Pins	Contacts Not Included	Receptacle Housing	3	PE Power	Silver	Keyed	120 °C	-40 °C	Unshielded	Free Hanging (In-Line)	Backshell	Nickel
BULGIN LIMITED PXM6011/16S/CR/0709/SN	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Circular	Brass	Metal	Crimp Solder Cup	Push-Twist	For Female Sockets	Contacts Not Included	Receptacle Housing	16	Power	Silver	Keyed	120 °C	-40 °C	Shielded	Free Hanging (In-Line)	Backshell	Nickel
BULGIN LIMITED PXM6011/03P/ST/0709/SN	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K		Brass	Metal		Push-Twist			Male Pins Plug	3	PE Power		Keyed	120 °C	-40 °C	Shielded	Free Hanging (In-Line)		Nickel	Silver	0.354 in	0.276 in	277 VAC	DC	Brass	16 A	Nickel	Screw
BULGIN LIMITED PXM6011/03S/ST/0910/SN	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K		Brass	Metal		Push-Twist			Female Sockets Plug	3	PE Power		Keyed	120 °C	-40 °C	Shielded	Free Hanging (In-Line)		Nickel	Silver	0.394 in	0.354 in	277 VAC	DC	Brass	16 A	Nickel	Screw
BULGIN LIMITED PXM6011/02P/CR/0405	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Circular	Brass	Metal	Crimp Solder Cup	Push-Twist	For Male Pins	Contacts Not Included	Receptacle Housing	2	Power	Silver	Keyed	120 °C	-40 °C	Unshielded	Free Hanging (In-Line)	Backshell	Nickel
BULGIN LIMITED PXM6011/16P/CR/0507/SN	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Circular	Brass	Metal	Crimp Solder Cup	Push-Twist	For Male Pins	Contacts Not Included	Receptacle Housing	16	Power	Silver	Keyed	120 °C	-40 °C	Shielded	Free Hanging (In-Line)	Backshell	Nickel
BULGIN LIMITED PXM6011/08S/CR/0405	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Circular	Brass	Metal	Crimp Solder Cup	Push-Twist	For Female Sockets	Contacts Not Included	Receptacle Housing	8	Power	Silver	Keyed	120 °C	-40 °C	Unshielded	Free Hanging (In-Line)	Backshell	Nickel
BULGIN LIMITED PXM6011/02P/ST/0507/SN	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K		Brass	Metal		Push-Twist			Male Pins Plug	2	Power		Keyed	120 °C	-40 °C	Shielded	Free Hanging (In-Line)		Nickel	Silver	0.276 in	0.197 in	277 VAC	DC	Brass	16 A	Nickel	Screw
BULGIN LIMITED PXM6011/08S/CR/0405/SN	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Circular	Brass	Metal	Crimp Solder Cup	Push-Twist	For Female Sockets	Contacts Not Included	Receptacle Housing	8	Power	Silver	Keyed	120 °C	-40 °C	Shielded	Free Hanging (In-Line)	Backshell	Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

6000 Series CE Cert

6000 Series - Ethernet Buccaneer

6000 Series Plastic Wiring Instr

6000 Series UL Cert of Compliance

PXP6011/08P/CR/0405 | Datasheet
