1211P202
ObsoleteNidec Components Corporation

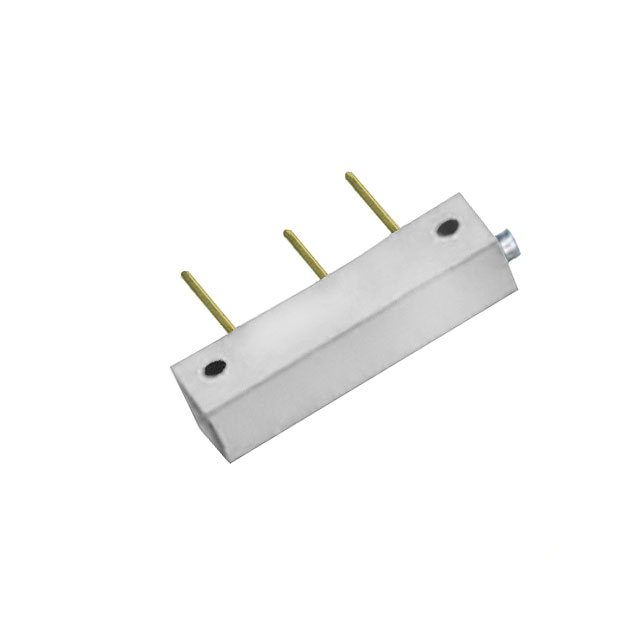

TRIMMER 2K OHM 0.75W PC PIN SIDE
1211P202
ObsoleteNidec Components Corporation
TRIMMER 2K OHM 0.75W PC PIN SIDE
Description
General part information
1211P202
2 kOhms 0.75W, 3/4W PC Pins Chassis Mount Trimmer Potentiometer Wirewound 22.0 Turn Side Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | 1211P202 |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Chassis Mount |
| Number of Turns | 22 turns |
| Power (Watts) | 750 mW |
| Power (Watts) Options | 3/4W |
| Resistance | 2 kOhm |
| Resistive Material | Wirewound |
| Size / Dimension Length | 0.323 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.276 in |
| Temperature Coefficient | 50 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 5 % |
