Description
General part information
09573080501000

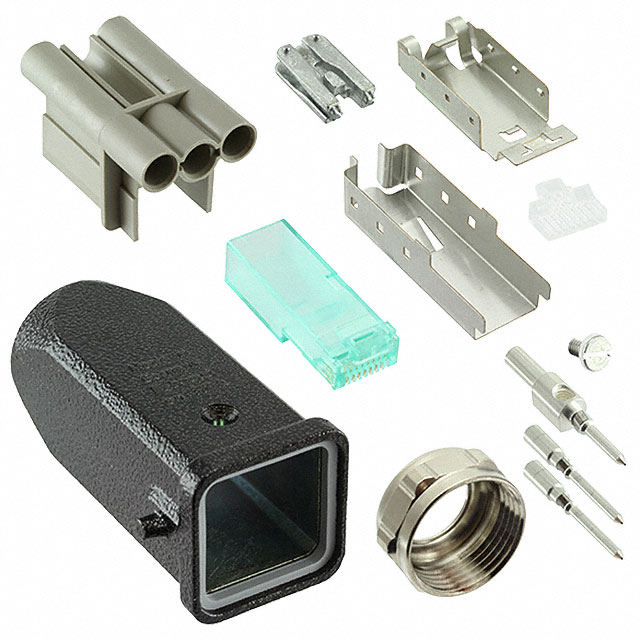

Plug Modular Connector 8p8c (RJ45), 3 Power Position Shielded Cat5 Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 09573080501000 |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Connector Type | RJ45, Plug |
| Contact Material | Copper Alloy |
| Features | Hybrid |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Power Contacts | 3 |
| Ratings | Cat5 |
| Shielding | Shielded |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 27 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
