224PR16 NC032

Active

ALPHA WIRE

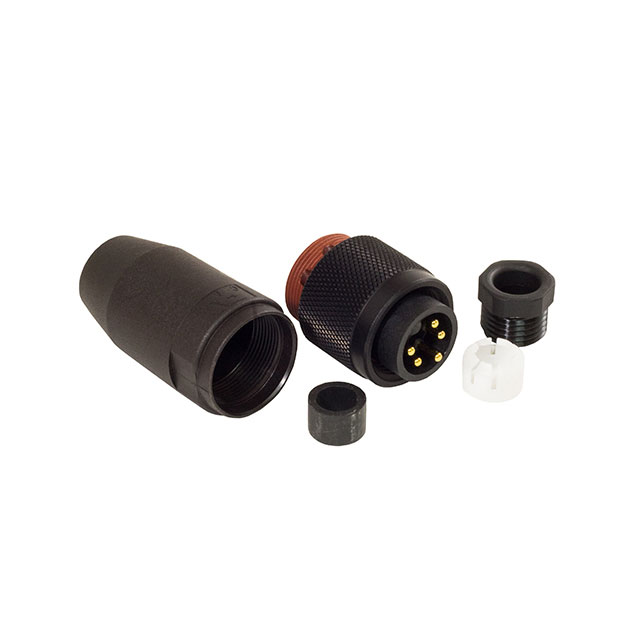

CONN PLUG MALE 5POS GOLD SCREW

Search across all available documentation for this part.

Active

ALPHA WIRE

CONN PLUG MALE 5POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	224PR16 NC032

Applications	Industrial
Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Anodized
Shell Material	Aluminum
Shell Size - Insert	7/8-5
Shielding	Unshielded
Termination	Screw

CONN PLUG MALE 5POS GOLD SCREW

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Shielding	Primary Material	Connector Type	Ingress Protection	Color	Features	Shell Finish	Mounting Type	Number of Positions	Backshell Material, Plating	Contact Finish - Mating	Shell Material	Applications	Insert Material	Shell Size - Insert	Termination
ALPHA WIRE 224PR16 NC032	Copper Alloy	90 °C	-40 °C	Keyed	Unshielded	Metal	Male Pins, Plug	IP67 - Dust Tight, Waterproof	Black	Backshell, Coupling Nut	Black Anodized	Free Hanging (In-Line)	5	Glass Filled, Nylon, Polyamide (PA)	Gold	Aluminum	Industrial	Nylon, Polyamide (PA)	7/8-5	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 (4 + PE) Position Circular Connector Plug, Male Pins Screw
