TMC025R1000FE02
ActiveVishay Dale
RES CHAS MNT 0.1 OHM 1% 25W
TMC025R1000FE02
ActiveVishay Dale
RES CHAS MNT 0.1 OHM 1% 25W
Description
General part information
TMC025R1000FE02

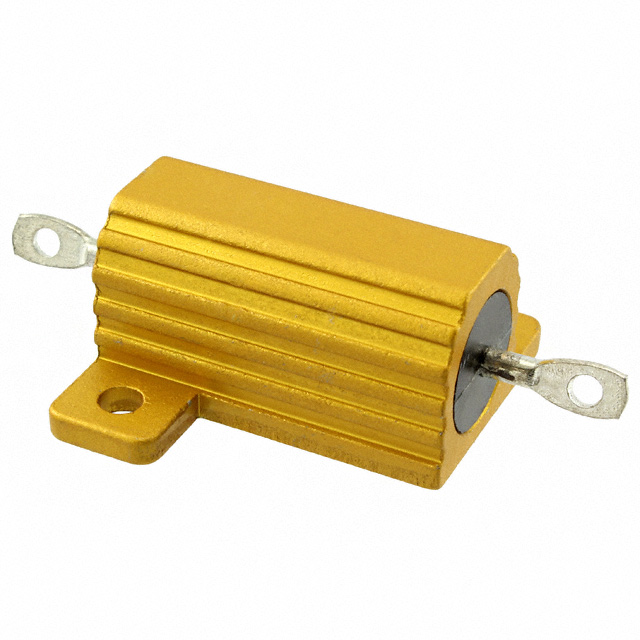

100 mOhms ±1% 25W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | TMC025R1000FE02 |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Features | Moisture Resistant |
| Height - Seated (Max) | 0.561 in |
| Housing Type | Aluminum |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 250 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Box, Axial |
| Power (Watts) | 25 W |
| Resistance | 100 mOhms |
| Size / Dimension Length | 1.062 in |
| Size / Dimension Width | 1.08 in |
| Tolerance | 1 % |
