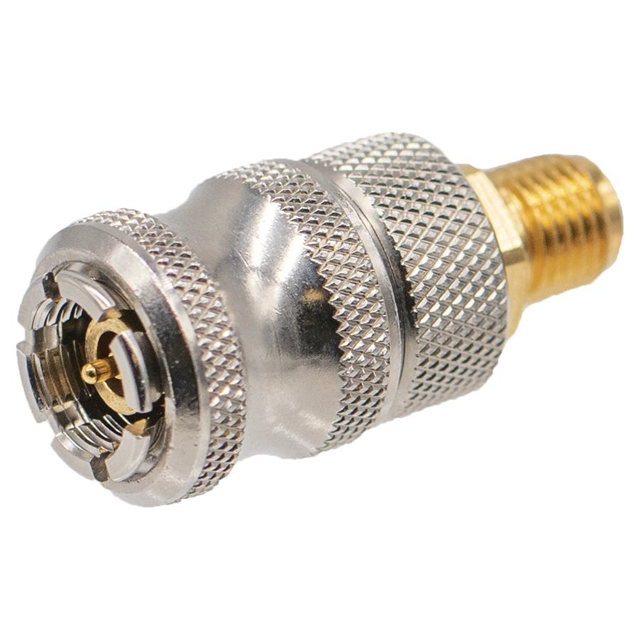

145-0901-841
ActiveCinch Connectivity Solutions Johnson
2.92MM, IN SERIES, JACK TO QUICK
Deep-Dive with AI
Search across all available documentation for this part.
145-0901-841
ActiveCinch Connectivity Solutions Johnson
2.92MM, IN SERIES, JACK TO QUICK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 145-0901-841 |
|---|---|
| Adapter Series [Max] | 2.92 mm |
| Adapter Series [Min] | 2.92 mm |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel, Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 2.92 mm |
| Convert To (Adapter End) | 2.92 mm |
| Convert To (Adapter End) | OS-2.9 Jack, Female Socket |
| Dielectric Material | Polystyrene (PS) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 39.24 | |
| 10 | $ 34.36 | |||
| 25 | $ 32.88 | |||
| 50 | $ 31.82 | |||
| 100 | $ 30.75 | |||
| 250 | $ 29.06 | |||
Description
General part information
145-0901-841
Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
