926309-7
ActiveTE Connectivity AMP Connectors

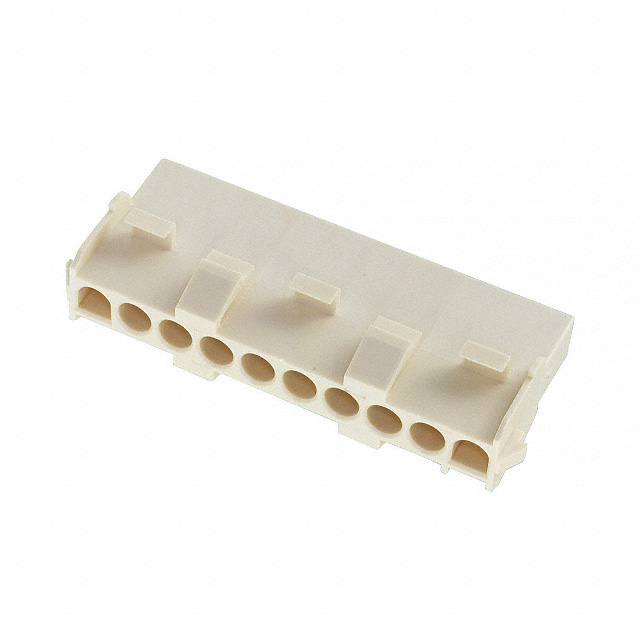

CONN RCPT HSG 10POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
926309-7
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 10POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 926309-7 | 926309 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Male or Female |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 10 | 10 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 105 - 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
926309 Series
CONN RCPT HSG 10POS
| Part | Number of Rows | Fastening Type | Contact Termination | Color | Insulation Material | Connector Type | Note | Contact Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 926309-7 | 1 | Locking Ramp | Crimp | Natural | Polyamide (PA66), Nylon 6/6 | Receptacle | Contacts Not Included | Male or Female | 10 | -55 °C | 125 °C |
TE Connectivity AMP Connectors 926309-3 | 1 | Locking Ramp | Crimp | Natural | Polyamide (PA66), Nylon 6/6 | Receptacle | Contacts Not Included | Male or Female | 10 | -55 °C | 105 ░C |
TE Connectivity AMP Connectors 926309-1 | 1 | Locking Ramp | Crimp | Natural | Polyamide (PA66), Nylon 6/6 | Receptacle | Contacts Not Included | Male or Female | 10 | -55 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
926309 Series
10 Rectangular Connectors - Housings Receptacle Natural
Documents
Technical documentation and resources
