TEM96A-80-80-3.0
ActiveShiu Li Technology Co., Ltd.
RF EMI ABSORB SHEET 3.15"X3.15"
TEM96A-80-80-3.0
ActiveShiu Li Technology Co., Ltd.
RF EMI ABSORB SHEET 3.15"X3.15"
Description
General part information
TEM96A-80-80-3.0

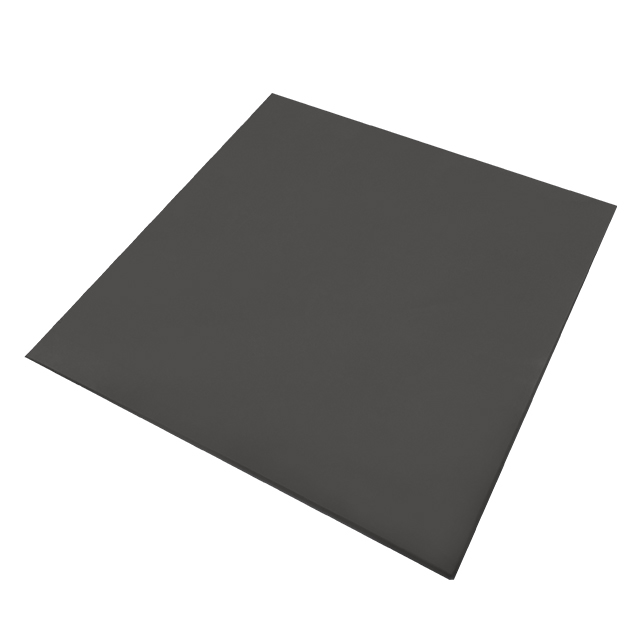

RF EMI Absorbing Sheet - Polymer Resin Conductive 3.150" (80.00mm) X 3.150" (80.00mm) X 0.118" (3.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | TEM96A-80-80-3.0 |
|---|---|
| Adhesive | Conductive |
| Length | 3.15 in |
| Material | Polymer Resin |
| Operating Temperature (Max) | 180 °C |
| Operating Temperature (Min) | -60 °C |
| Shape | Square |
| Shelf Life | 120 Months |
| Shelf Life Start | Date of Shipment |
| Thickness - Overall | 0.118 in |
| Type | Absorbing Sheet |
| Width | 3.15 in |
