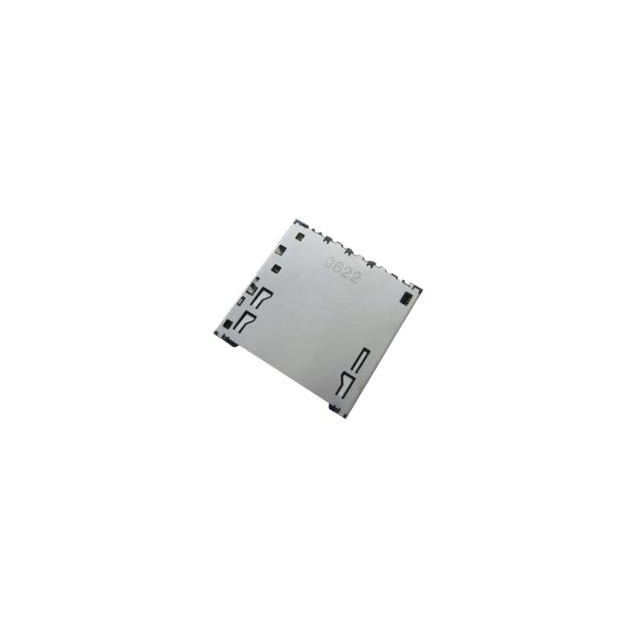

FPS009-2920-0

Active

Yamaichi Electronics

CONN SD CARD R/A SMD

Search across all available documentation for this part.

Active

Yamaichi Electronics

CONN SD CARD R/A SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SD CARD R/A SMD

Part	Connector Type	Mounting Type	Height Above Board [z]	Height Above Board [z]	Insertion, Removal Method	Card Type	Features	Contact Finish	Mounting Feature	Ejector Side	Height Above Board	Height Above Board	Number of Positions
Yamaichi Electronics FPS009-2920-0	Connector and Ejector	Surface Mount, Right Angle	0.11 "	2.8 mm	Push In, Push Out	Secure Digital - SD	Switch	Gold-Nickel	Normal, Standard - Top
Yamaichi Electronics FPS009-4200-0	Connector and Ejector	Surface Mount, Right Angle			Push In, Push Out	Secure Digital - SD		Gold-Nickel	Normal, Standard - Top	Right	4.4 mm	0.173 in	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 (9 + 3) Position Card Connector Secure Digital - SD Surface Mount, Right Angle Gold-Nickel
