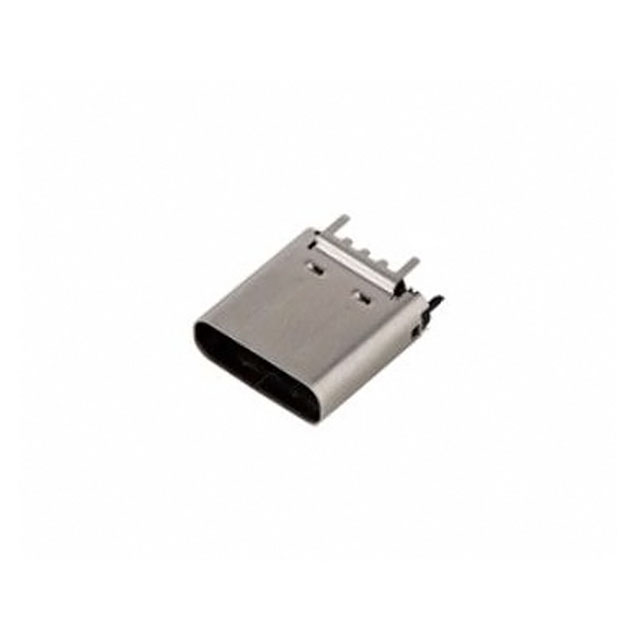

10132328-10011LF
ActiveAmphenol ICC (FCI)
CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
10132328-10011LF
ActiveAmphenol ICC (FCI)
CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10132328-10011LF |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | GXT™, Gold |
| Features | Solder Retention, Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Voltage - Rated | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.43 | |
| 10 | $ 2.62 | |||
| 25 | $ 2.36 | |||
| 50 | $ 2.19 | |||
| 100 | $ 2.02 | |||
| Digi-Reel® | 1 | $ 3.43 | ||
| 10 | $ 2.62 | |||
| 25 | $ 2.36 | |||
| 50 | $ 2.19 | |||
| 100 | $ 2.02 | |||
| Tape & Reel (TR) | 350 | $ 1.77 | ||
| 700 | $ 1.65 | |||
| 1050 | $ 1.58 | |||
| 1750 | $ 1.51 | |||
| 2450 | $ 1.46 | |||
| 3500 | $ 1.41 | |||
Description
General part information
10132328 Series
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Through Hole
