Description
General part information
02205094

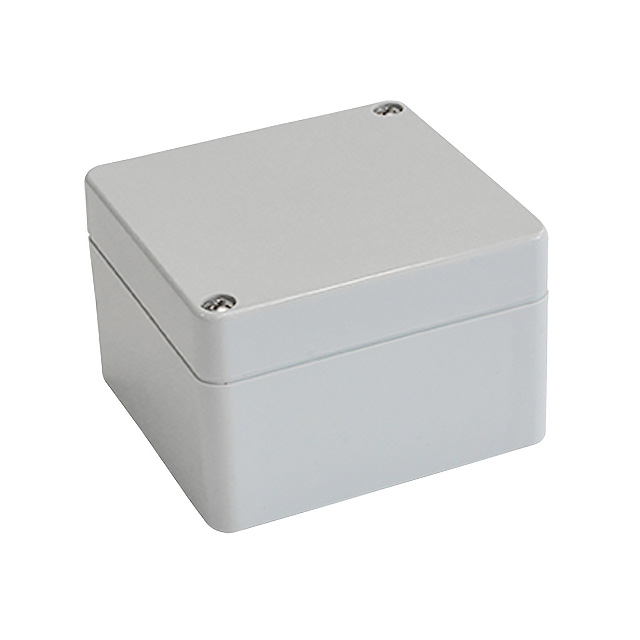

Box Plastic, Polycarbonate Gray Cover Included 2.047" L x 1.969" W (52.00mm x 50.00mm) X 1.378" (35.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 02205094 |
|---|---|
| Area (L x W) | 4.03 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight, Flame Retardant, PCB Supports |
| Height | 1.378 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Ratings | NEMA 4X, IP65 |
| Size / Dimension Length | 2.047 in |
| Size / Dimension Width | 1.969 in |
| Thickness | 0.079 in |
| Weight | 0.08 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
