GFTX-8

Active

Curtis Industries

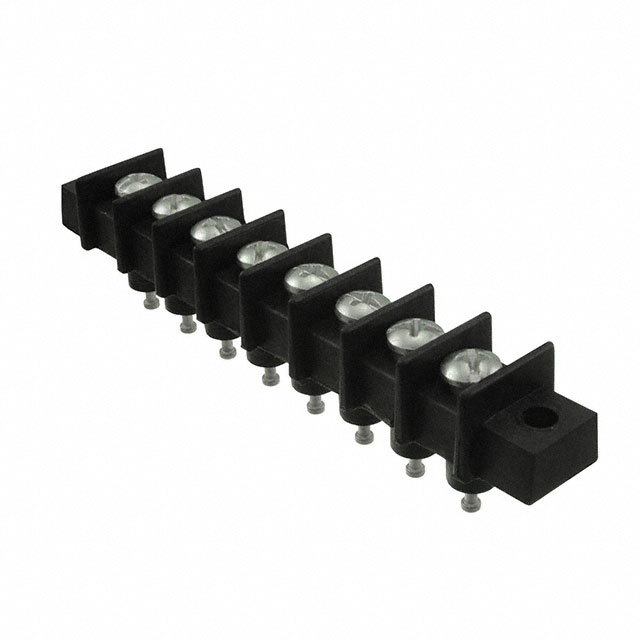

CONN BARRIER STRIP 8CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GFTX-8

Active

Curtis Industries

CONN BARRIER STRIP 8CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.64
		10	$ 12.00
		25	$ 11.32
		50	$ 10.77
		100	$ 10.57
		250	$ 9.20
		500	$ 8.86
		1000	$ 8.52

Description

General part information

GFTX Series

8 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GFTX-8	GFTX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Solder Turret, Insulated	Solder Turret, Insulated
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	-	2 - 23
Number of Circuits [custom]	8	8
Number of Rows	1	1
Number of Wire Entries	8	2 - 17
Number of Wire Entries	-	22 - 23
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

GFTX Series

CONN BARRIER STRP 12CIRC 0.438"

Part	Material - Insulation	Bottom Termination	Barrier Type	Terminal Screw Material	Top Termination	Number of Rows	Material Flammability Rating	Number of Wire Entries	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Block Type	Color	Mounting Type	Number of Circuits	Operating Temperature	Current Rating (Amps)	Features	Number of Circuits [custom]	Number of Wire Entries [custom]
Curtis Industries GFTX-12	Polyphenylene Oxide (PPO)	Solder Turret, Insulated	2 Wall (Dual)	Steel	Screws	1	UL94 V-0	12	11.12 mm	0.438 in	12 AWG	22 AWG	Barrier Block	Black	Chassis, Panel	12	110 °C	20 A	Flange
Curtis Industries GFTX-4	Polyphenylene Oxide (PPO)	Solder Turret, Insulated	2 Wall (Dual)	Steel	Screws	1	UL94 V-0	4	11.12 mm	0.438 in	12 AWG	22 AWG	Barrier Block	Black	Chassis, Panel	4	110 °C	20 A	Flange
Curtis Industries GFTX-8	Polyphenylene Oxide (PPO)	Solder Turret, Insulated	2 Wall (Dual)	Steel	Screws	1	UL94 V-0	8	11.12 mm	0.438 in	12 AWG	22 AWG	Barrier Block	Black	Chassis, Panel		110 °C	20 A	Flange	8
Curtis Industries GFTX-3	Polyphenylene Oxide (PPO)	Solder Turret, Insulated	2 Wall (Dual)	Steel	Screws	1	UL94 V-0	3	11.12 mm	0.438 in	12 AWG	22 AWG	Barrier Block	Black	Chassis, Panel	3	110 °C	20 A	Flange
Curtis Industries GFTX-14	Polyphenylene Oxide (PPO)	Solder Turret, Insulated	2 Wall (Dual)	Steel	Screws	1	UL94 V-0	14	11.12 mm	0.438 in	12 AWG	22 AWG	Barrier Block	Black	Chassis, Panel	14	110 °C	20 A	Flange
Curtis Industries GFTX-22	Polyphenylene Oxide (PPO)	Solder Turret, Insulated	2 Wall (Dual)	Steel	Screws	1	UL94 V-0		11.12 mm	0.438 in	12 AWG	22 AWG	Barrier Block	Black	Chassis, Panel	22	110 °C	20 A	Flange		22
Curtis Industries GFTX-17	Polyphenylene Oxide (PPO)	Solder Turret, Insulated	2 Wall (Dual)	Steel	Screws	1	UL94 V-0	17	11.12 mm	0.438 in	12 AWG	22 AWG	Barrier Block	Black	Chassis, Panel	17	110 °C	20 A	Flange
Curtis Industries GFTX-2	Polyphenylene Oxide (PPO)	Solder Turret, Insulated	2 Wall (Dual)	Steel	Screws	1	UL94 V-0	2	11.12 mm	0.438 in	12 AWG	22 AWG	Barrier Block	Black	Chassis, Panel	2	110 °C	20 A	Flange
Curtis Industries GFTX-23	Polyphenylene Oxide (PPO)	Solder Turret, Insulated	2 Wall (Dual)	Steel	Screws	1	UL94 V-0		11.12 mm	0.438 in	12 AWG	22 AWG	Barrier Block	Black	Chassis, Panel	23	110 °C	20 A	Flange		23
