ATEP-R-B

Active

Menics

COMPLETE UNIT RED LED FLASHING

Search across all available documentation for this part.

Active

Menics

COMPLETE UNIT RED LED FLASHING

Technical Specifications

Parameters and characteristics for this part

Part	Light Color	Voltage - Supply	Number of Stacks	Termination Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Function - Lighting	Function - Audible
Menics ATEP-RYGBC	Blue Clear Green Red Yellow	110 VAC/DC	5	Cable with Connector	Pushbutton Control	-15 °C	40 °C	Complete Unit	Flashing Steady
Menics ATEP-RYG-B	Green Red Yellow	110 VAC/DC	3	Cable with Connector	Pushbutton Control	-15 °C	40 °C	Complete Unit	Flashing Steady	Continuous
Menics ATEP-RG	Green Red	110 VAC/DC	2	Cable with Connector	Pushbutton Control	-15 °C	40 °C	Complete Unit	Flashing Steady
Menics ATEP-RG-Z	Green Red	110 VAC/DC	2	Cable with Connector	Adjustable Volume Pushbutton Control	-15 °C	40 °C	Complete Unit	Flashing Steady	Continuous
Menics ATEP-RYG-Z	Green Red Yellow	110 VAC/DC	3	Cable with Connector	Adjustable Volume Pushbutton Control	-15 °C	40 °C	Complete Unit	Flashing Steady	Continuous
Menics ATEP-RYG	Green Red Yellow	110 VAC/DC	3	Cable with Connector	Pushbutton Control	-15 °C	40 °C	Complete Unit	Flashing Steady
Menics ATEP-RY-Z	Red Yellow	110 VAC/DC	2	Cable with Connector	Adjustable Volume Pushbutton Control	-15 °C	40 °C	Complete Unit	Flashing Steady	Continuous
Menics ATEP-RYGB-B	Blue Green Red Yellow	110 VAC/DC	4	Cable with Connector	Pushbutton Control	-15 °C	40 °C	Complete Unit	Flashing Steady	Continuous
Menics ATEP-R-B	Red	110 VAC/DC	1	Cable with Connector	Pushbutton Control	-15 °C	40 °C	Complete Unit	Flashing	Continuous
Menics ATEP-R-Z	Red	110 VAC/DC	1	Cable with Connector	Adjustable Volume Pushbutton Control	-15 °C	40 °C	Complete Unit	Flashing	Continuous

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 155.00

General part information

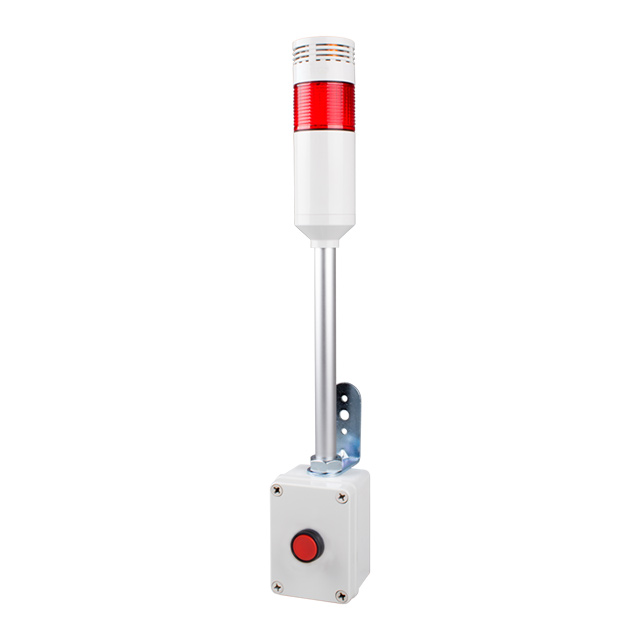

Stack Light Complete Unit Red LED Pushbutton Control Cable with Connector

Technical documentation and resources
