SBP190594WE1

Active

TE Connectivity Raychem Cable Protection

LABEL SELF LAMINATING WHITE

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LABEL SELF LAMINATING WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	SBP190594WE1

Color	White
For Use With/Related Products	TE3124M, T212M, T208, TE3012M, T308S, T312S, TE3112M
Label Size [x]	48.3 mm
Label Size [x]	1.9 "
Label Size [y]	5.95 in
Label Size [y]	151 mm
Label Type	Self Laminating
Material	Vinyl Film
Operating Temperature [Max]	93 °C
Operating Temperature [Min]	-51 °C

Part	Material	For Use With/Related Products	Operating Temperature [Min]	Operating Temperature [Max]	Color	Label Size [y]	Label Size [x]	Label Size [y]	Label Size [x]	Label Type
TE Connectivity Raychem Cable Protection SBP190594WE1	Vinyl Film	T208 T212M T308S T312S TE3012M TE3112M TE3124M	-51 °C	93 °C	White	5.95 in	48.3 mm	151 mm	1.9 "	Self Laminating

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.78

General part information

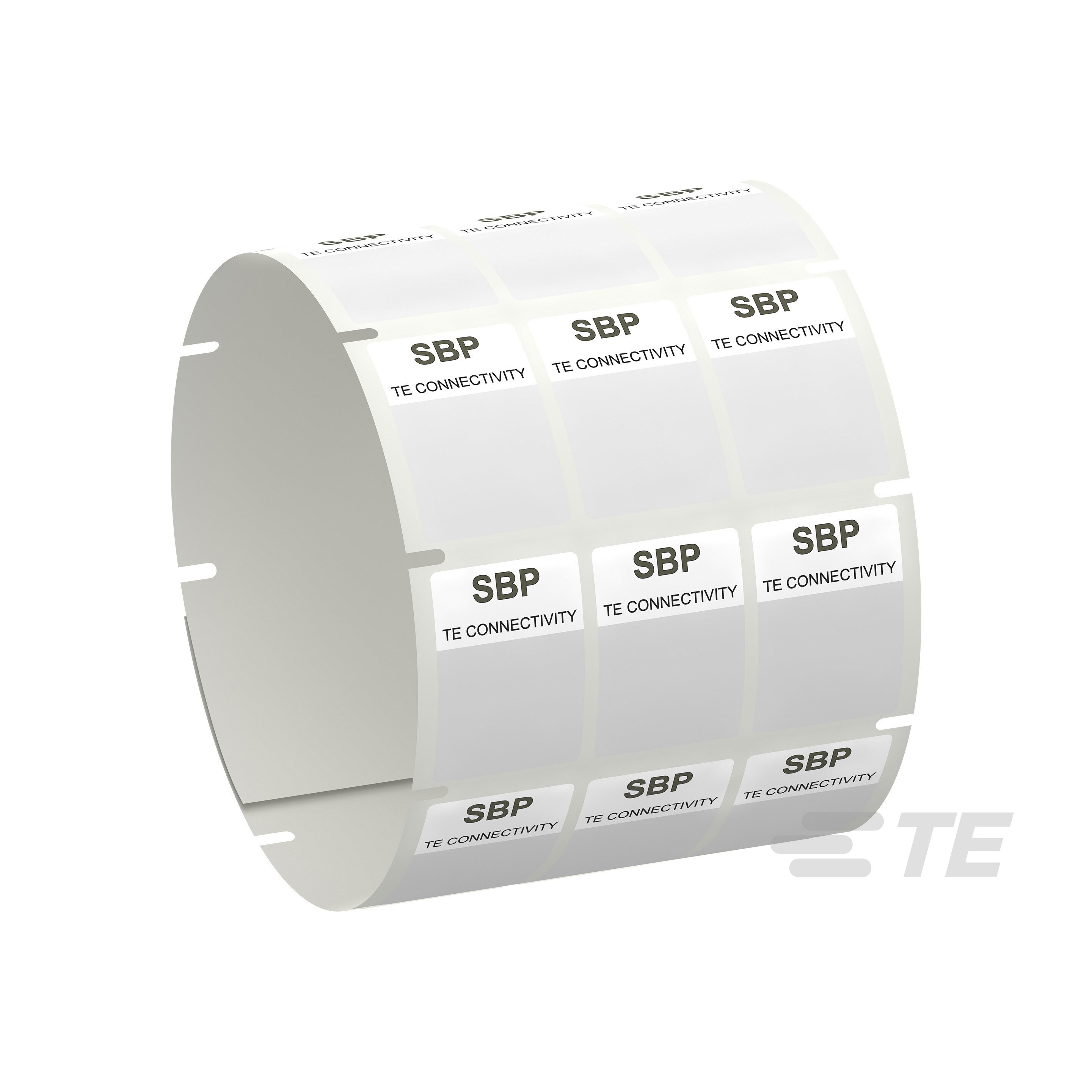

White Self Laminating Label 1.90" x 5.95" (48.3mm x 151.0mm)
