ES5235M1.CR.BGO.ITU
ObsoleteIdeal-tek S.A.

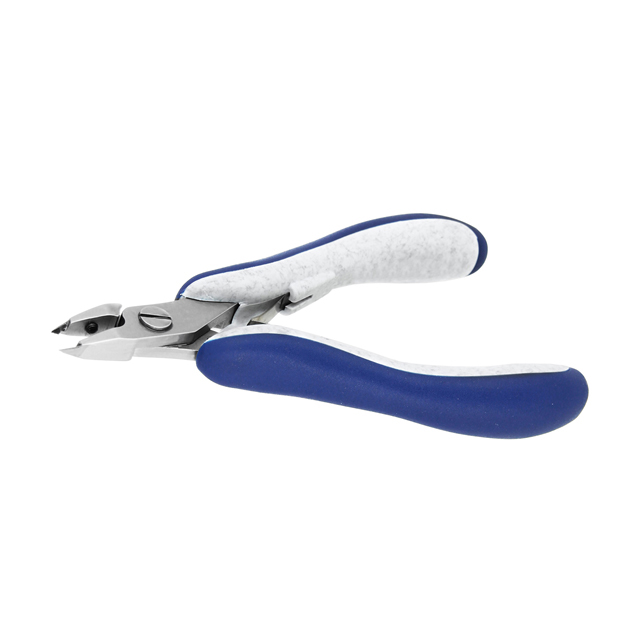

MED CUTTER OBLIQ MICR,FULLFL,ESD
ES5235M1.CR.BGO.ITU
ObsoleteIdeal-tek S.A.
MED CUTTER OBLIQ MICR,FULLFL,ESD
Description
General part information
ES5235M1.CR.BGO.ITU
Tip (Oblique) Cutter Angled, 15° Full Flush 5.12" (130.0mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | ES5235M1.CR.BGO.ITU |
|---|---|
| Capacity (Hard Wire) Maximum | 46 AWG |
| Capacity (Hard Wire) Minimum | 38 AWG |
| Capacity (Medium Wire) Maximum | 46 AWG |
| Capacity (Medium Wire) Minimum | 32 AWG |
| Capacity (Soft Wire) Maximum | 46 AWG |
| Capacity (Soft Wire) Minimum | 29 AWG |
| Cut Edge | Full Flush |
| Features | Ergonomic, ESD Safe |
| Length - Overall | 5.12 in |
| Shape | Angled |
| Shape Angle | 15 ° |
| Type | Tip (Oblique) |
