TDA7850AH
ActiveQUAD BTP OUTPUT WITH HSD, OFFSET DETECTION , STAND-BY AND MUTE INPUTS
Deep-Dive with AI
Search across all available documentation for this part.
TDA7850AH
ActiveQUAD BTP OUTPUT WITH HSD, OFFSET DETECTION , STAND-BY AND MUTE INPUTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TDA7850AH | TDA7850 Series |
|---|---|---|
| Features | - | Short-Circuit and Thermal Protection, Mute, Standby |
| Max Output Power x Channels @ Load | - | 4 - 85 W |
| Mounting Type | - | Through Hole |
| null | - | |
| Operating Temperature | - | -55 °C |
| Operating Temperature | - | 150 °C |
| Output Type | - | 4-Channel (Quad) |

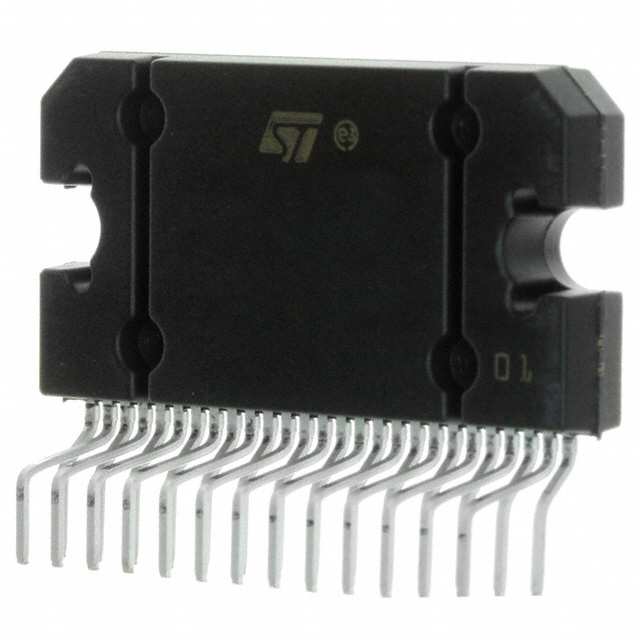

| Package / Case | - | 27-Flexiwatt, Formed Leads |
| Supplier Device Package | - | 27-Flexiwatt (Horizontal) |
| Type | - | Class AB |
| Voltage - Supply | - | 8 V |
| Voltage - Supply | - | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 357 | $ 7.61 | |
TDA7850 Series
QUAD BTP OUTPUT WITH HSD, OFFSET DETECTION , STAND-BY AND MUTE INPUTS
| Part | Package / Case | Features | Output Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Max Output Power x Channels @ Load | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TDA7850AH | |||||||||||
STMicroelectronics TDA7850H | |||||||||||
STMicroelectronics TDA7850H | |||||||||||
STMicroelectronics TDA7850AH | 27-Flexiwatt, Formed Leads | Mute, Short-Circuit and Thermal Protection, Standby | 4-Channel (Quad) | Through Hole | -55 °C | 150 °C | 4, 85 W | 27-Flexiwatt (Horizontal) | 8 V | 18 V | Class AB |
STMicroelectronics TDA7850 | |||||||||||
STMicroelectronics TDA7850 | |||||||||||
STMicroelectronics TDA7850 | |||||||||||
STMicroelectronics TDA7850AEP | |||||||||||
STMicroelectronics TDA7850H |
Description
General part information
TDA7850 Series
The TDA7850A is a breakthrough MOSFET technology class AB audio power amplifier in Flexiwatt27 package designed for high power car radio. The fully complementary P-Channel/N-Channel output structure allows a rail to rail output voltage swing which, combined with high output current and minimized saturation losses sets new power references in the car-radio field, with unparalleled distortion performances.
The TDA7850A integrates a DC offset detector.
