1-967630-6
ActiveTE Connectivity AMP Connectors

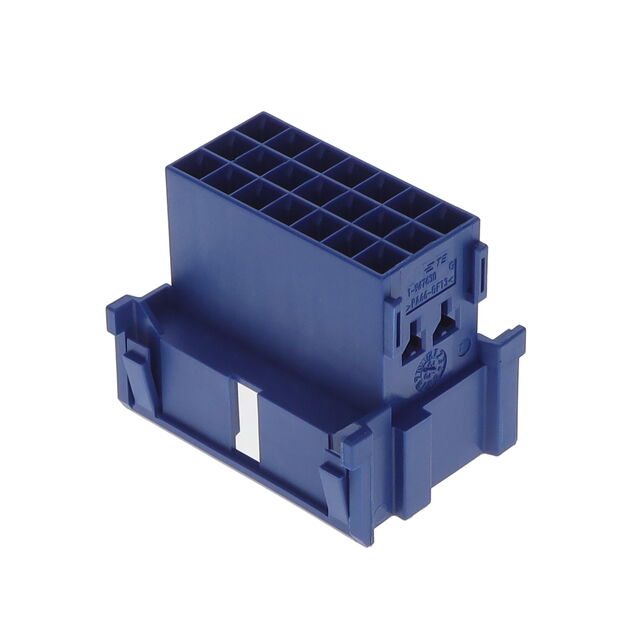

CONN PLUG HSG 21POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
1-967630-6
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 21POS 5.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967630-6 |
|---|---|
| Color | Blue |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 21 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Row Spacing | 5.51 mm |
| Row Spacing [x] | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.33 | |
| 10 | $ 1.22 | |||
| 25 | $ 1.18 | |||
| 50 | $ 1.17 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.07 | |||
| 600 | $ 1.06 | |||
967630 Series
CONN PLUG HSG 21POS 5.00MM
| Part | Number of Positions | Contact Termination | Color | Row Spacing [x] | Row Spacing | Mounting Type | Number of Rows | Insulation Material | Contact Type | Note | Connector Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967630-6 | 21 | Crimp | Blue | 0.217 in | 5.51 mm | Free Hanging (In-Line) | 3 | Polyamide (PA66), Nylon 6/6, Glass Filled | Tab | Contacts Not Included | Plug | 5 mm | 0.197 in | -40 °C | 120 °C |
Description
General part information
967630 Series
21 Rectangular Connectors - Housings Plug Blue 0.197" (5.00mm)
