0828767
ActivePhoenix Contact
TERMINAL BLOCK TOOLS & ACCESSORIES US-WMT (15 X 4)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0828767 | US-WMT Series |
|---|---|---|
| Cable Diameter | - | 0.024 - 0.059 in |
| Cable Diameter | - | 14 - 22 mm |
| Cable Diameter | - | 0.394 - 1.378 in |
| Cable Diameter | - | 0.6 - 1.5 mm |
| Cable Diameter | - | 10 - 35 mm |
| Cable Diameter | - | 7 mm |
| Cable Diameter [diameter] | 1.969 in, 0.024 in | 0.024 - 1.969 in |
| Cable Diameter [diameter] | 50 mm, 0.6 mm | 0.6 - 50 mm |
| Color | White | White, Yellow, Blue |
| Legend | Blank | Blank |
| Material | PVC | PVC |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Size | - | 4.3 mm |
| Size | - | 12 mm |
| Size | - | 0.47 in |
| Size | - | 0.17 in |
| Size [x] | 0.17 " | 0.17 - 4.3 " |
| Size [x] | 4.2 mm | 4.2 - 30 mm |
| Size [y] | 15 mm | 4.2 - 18 mm |
| Size [y] | 0.59 in | 0.17 - 23 in |
| Type | Wire Marker, Cable Tie | Wire Marker, Cable Tie |
US-WMT Series
WIRE MARKER CBL TIE 18MM X 4.2MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material | Color | Size [y] | Size [x] | Size [x] | Size [y] | Legend | Cable Diameter [Min] [diameter] | Cable Diameter [Max] [diameter] | Cable Diameter [Max] [diameter] | Cable Diameter [Min] [diameter] | Type | Size [custom] | Size [custom] | Size [custom] | Size [custom] | Cable Diameter [Max] [diameter] | Cable Diameter [diameter] | Cable Diameter [diameter] | Cable Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0828768 | -30 ░C | 80 C | PVC | White | 0.71 in | 4.2 mm | 0.17 " | 18 mm | Blank | 0.024 in | 22 mm | 0.866 in | 0.6 mm | Wire Marker, Cable Tie | ||||||||
Phoenix Contact 0828766 | -30 ░C | 80 C | PVC | White | Blank | 0.024 in | 0.394 in | 0.6 mm | Wire Marker, Cable Tie | 4.3 mm | 12 mm | 0.47 in | 0.17 in | 10 mm | ||||||||
Phoenix Contact 0829957 | -30 ░C | 80 C | PVC | White | 0.39 " | 4.3 mm | 0.17 " | 10 mm | Blank | Wire Marker, Cable Tie | 7 mm | 0.6 mm | 0.024 in, 0.276 in | |||||||||
Phoenix Contact 0828769 | -30 ░C | 80 C | PVC | White | 0.91 in, 23 mm | 0.17 ", 4.3 mm | Blank | 0.059 in | 1.378 in | 1.5 mm | Wire Marker, Cable Tie | 35 mm | ||||||||||
Phoenix Contact 0828767 | -30 ░C | 80 C | PVC | White | 0.59 in | 4.2 mm | 0.17 " | 15 mm | Blank | Wire Marker, Cable Tie | 0.6 mm, 50 mm | 0.024 in, 1.969 in | ||||||||||
Phoenix Contact 0828954 | -30 ░C | 80 C | PVC | Yellow | 0.59 in | 4.2 mm | 0.17 " | 15 mm | Blank | 0.6 mm, 50 mm | 0.024 in, 1.969 in | |||||||||||
Phoenix Contact 0828765 | -30 ░C | 80 C | PVC | White | 0.39 " | 4.3 mm | 0.17 " | 10 mm | Blank | Wire Marker, Cable Tie | 7 mm | 0.6 mm | 0.024 in, 0.276 in | |||||||||
Phoenix Contact 0829312 | -30 ░C | 80 C | PVC | Blue | 0.17 in | 30 mm | 1.18 in | 4.2 mm | Blank | 0.059 in | 14 mm | 0.551 in | 1.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
US-WMT Series

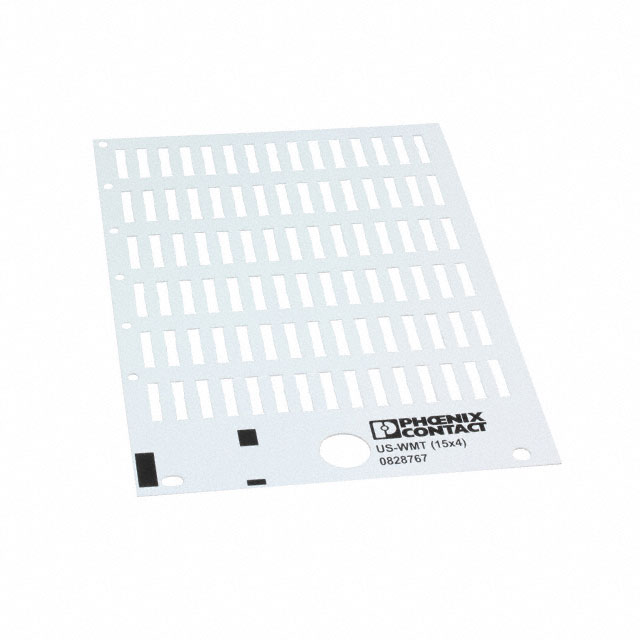

Wire Marker, Cable Tie 0.59" W x 0.17" L (15.0mm x 4.2mm) White PVC
