625L3G013M33000
ActiveCTS-Frequency Controls
13.330000 MHZ HYBRID CIRCUIT
625L3G013M33000
ActiveCTS-Frequency Controls
13.330000 MHZ HYBRID CIRCUIT
Description
General part information
625L3G013M33000

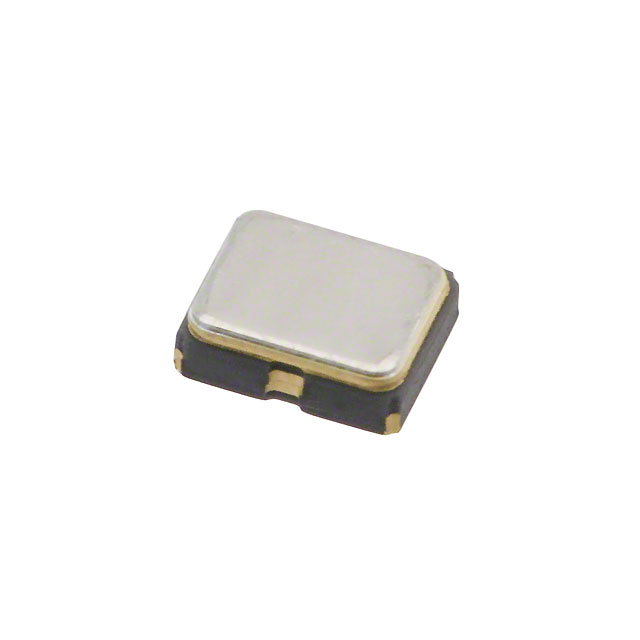

13.33 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 625L3G013M33000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 10 µA |
| Current - Supply (Max) | 15 mA |
| Frequency | 13.33 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
