01306.15.01

Active

Prysmian Group

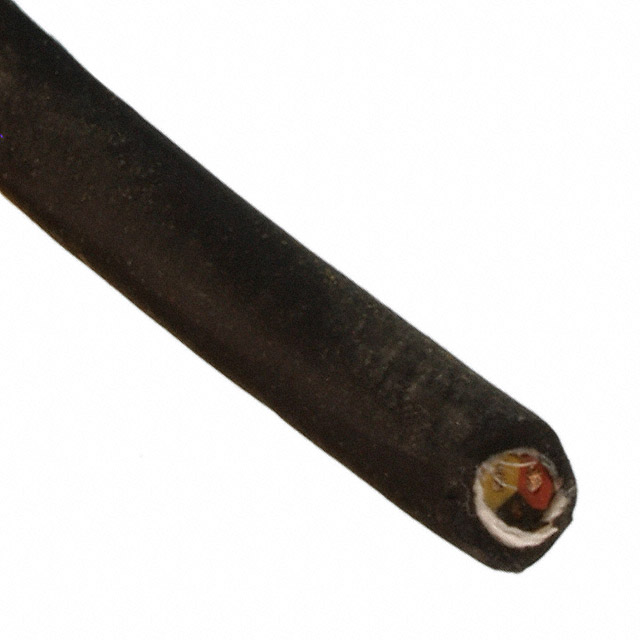

CABLE 3COND 16AWG BLACK 250'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 16AWG BLACK 250'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	01306.15.01	01306 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	30 AWG	30 AWG
Conductor Strand [custom]	26	26
Jacket (Insulation) Diameter [diameter]	0.33 in	0.33 in
Jacket (Insulation) Diameter [diameter]	8.38 mm	8.38 mm
Jacket (Insulation) Material	Rubber	Rubber
Jacket (Insulation) Thickness	0.762 mm	0.762 mm
Jacket (Insulation) Thickness	0.03 in	0.03 in
Jacket Color	Black	Black
Length	3000 "	3000 "
Length	76.2 m	76.2 m
Number of Conductors	3	3
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Voltage	300 V	300 V
Wire Gauge	16 AWG	16 AWG

CABLE 3COND 16AWG BLACK 250'

Part	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Material	Number of Conductors	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Conductor Material	Conductor Insulation	Wire Gauge
Prysmian Group 01306.15T.01	30 AWG	26	300 V	0.33 in	8.38 mm	0.762 mm	0.03 in	Multi-Conductor	Rubber	3	Black	-40 °C	60 °C	3000 "	76.2 m	Copper, Bare	Ethylene Propylene Terpolymer Rubber (EPDM)	16 AWG
Prysmian Group 01306.15.01	30 AWG	26	300 V	0.33 in	8.38 mm	0.762 mm	0.03 in	Multi-Conductor	Rubber	3	Black	-40 °C	60 °C	3000 "	76.2 m	Copper, Bare	Ethylene Propylene Terpolymer Rubber (EPDM)	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Conductor Multi-Conductor Cable Black 16 AWG 250.0' (76.2m)

Technical documentation and resources

No documents available
