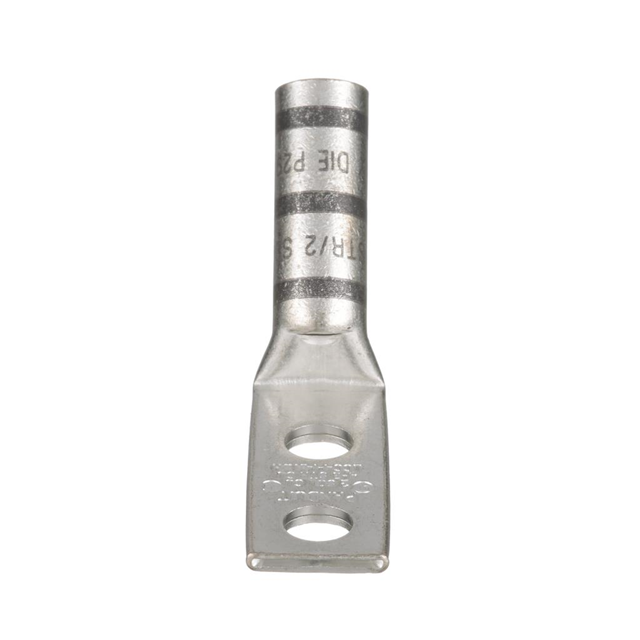

Specification	LCC4-14AWH-L

Color	Gray
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.28 in
Diameter - Barrel OD	0.38 in
Diameter - Ring ID	0.27 in
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line), 45° Angle
Stud/Tab Size	0.25 Stud
Tab Thickness	0.09 in
Terminal Style	Two Stud Holes
Terminal Type	Rectangular Tongue
Termination	Barrel, Crimb
Width - Outer Edges	0.55 in
Wire Gauge (AWG) (Max)	4 AWG
Wire Gauge (AWG) (Min)	2 AWG

LCC4 Series

Part	Contact Material	Contact Finish	Diameter - Barrel ID	Diameter - Barrel OD	Diameter - Ring ID	Color	Width - Outer Edges	Stud/Tab Size	Tab Thickness	Insulation	Terminal Type	Wire Gauge	Terminal Style	Mounting Type	Termination	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Stud/Tab Size
Panduit Corp LCC4/0-12DW-X	Copper	Electro-Tin	0.57 in	0.71 in	0.53 in	Purple	1.06 in	0.5 Stud	0.14 in	Non-Insulated	Rectangular Tongue	4/0 AWG	Two Stud Holes	Free Hanging (In-Line)	Barrel Crimb	4.04 in
Panduit Corp LCC4-38DWF-L	Copper	Electro-Tin	0.28 in	0.38 in	0.41 in	Gray	0.62 in	0.375 in	0.08 in	Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line) Right Angle	Barrel Crimb		4 AWG	2 AWG	3 Stud 8 Stud
Panduit Corp LCC4-38DWH-L	Copper	Electro-Tin	0.28 in	0.38 in	0.41 in	Gray	0.62 in	0.375 in	0.08 in	Non-Insulated	Rectangular Tongue		Two Stud Holes	45° Angle Free Hanging (In-Line)	Barrel Crimb		4 AWG	2 AWG	3 Stud 8 Stud
Panduit Corp LCC4-14BH-L	Copper	Electro-Tin	0.28 in	0.38 in	0.27 in	Gray	0.55 in	0.25 Stud	0.09 in	Non-Insulated	Rectangular Tongue		Two Stud Holes	45° Angle Free Hanging (In-Line)	Barrel Crimb		4 AWG	2 AWG
Panduit Corp LCC4-12-L	Copper	Electro-Tin	0.28 in	0.38 in	0.53 in	Gray	0.75 in	0.5 Stud	0.07 in	Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line)	Barrel Crimb	4.09 in	4 AWG	2 AWG
Panduit Corp LCC4-10BWF-L	Copper	Electro-Tin	0.28 in	0.38 in	0.2 in	Gray	0.55 in	10 Stud	0.09 in	Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line) Right Angle	Barrel Crimb		4 AWG	2 AWG
Panduit Corp LCC4-14AWF-L	Copper	Electro-Tin	0.28 in	0.38 in	0.27 in	Gray	0.55 in	0.25 Stud	0.09 in	Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line) Right Angle	Barrel Crimb		4 AWG	2 AWG
Panduit Corp LCC4-38D-L	Copper	Electro-Tin	0.28 in	0.38 in	0.41 in	Gray	0.62 in	0.375 in	0.08 in	Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line)	Barrel Crimb	3.17 in	4 AWG	2 AWG	3 Stud 8 Stud
Panduit Corp LCC4/0-14B-X	Copper	Electro-Tin	0.57 in	0.71 in	0.27 in	Purple	1.06 in	0.25 Stud	0.14 in	Non-Insulated	Rectangular Tongue	4/0 AWG	Two Stud Holes	Free Hanging (In-Line)	Barrel Crimb	3.66 in
Panduit Corp LCC4-14ADW-L	Copper	Electro-Tin	0.28 in	0.38 in	0.27 in	Gray	0.55 in	0.25 Stud	0.09 in	Non-Insulated	Grounding Lug		Round Slotted	Free Hanging (In-Line)	Barrel Crimb	2.87 in	4 AWG	2 AWG
