B82134A5152M000
ObsoleteEPCOS - TDK Electronics
FIXED IND 30UH 1.5A 300 MOHM TH
B82134A5152M000
ObsoleteEPCOS - TDK Electronics
FIXED IND 30UH 1.5A 300 MOHM TH
Description
General part information
B82134A5152M000

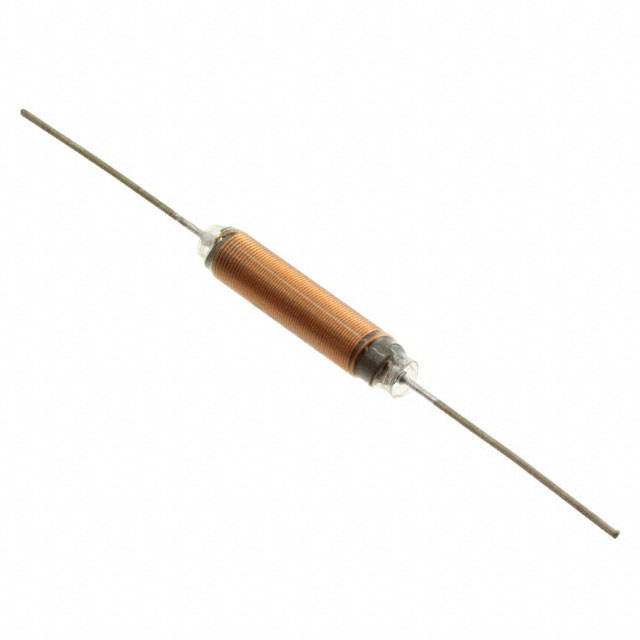

30 µH Unshielded Drum Core, Wirewound Inductor 1.5 A 300mOhm Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82134A5152M000 |
|---|---|
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 300 mOhm |
| Frequency - Self Resonant | 44 MHz |
| Inductance | 30 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.295 in |
| Size / Dimension Length | 1.181 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
