TT49767E-TR

TT49767E-TR

Obsolete
Skyworks Solutions Inc.

FILTER,TT4P5-1434P2-16615E-TR

Find alt
TT49767E-TR

TT49767E-TR

Obsolete
Skyworks Solutions Inc.

FILTER,TT4P5-1434P2-16615E-TR

Find alt

Description

General part information

TT49767E-TR

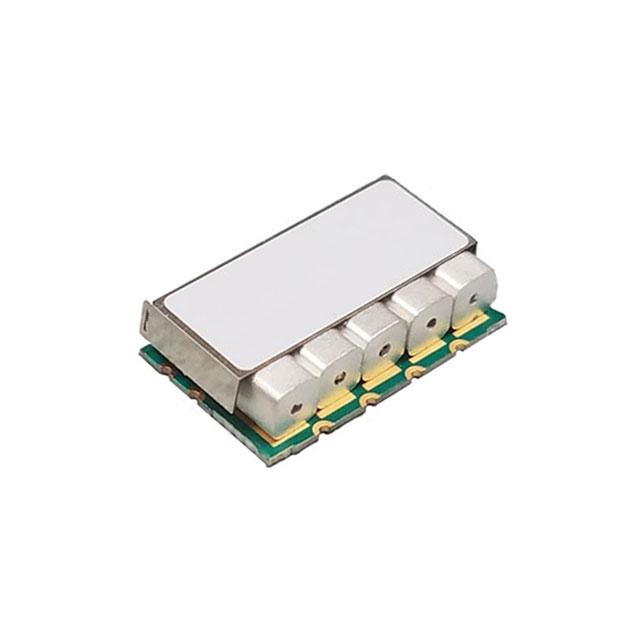

1.4GHz Center Band Pass Ceramic Filter 166 MHz 50Ohm 11-SMD Module

Technical Specifications

Parameters and characteristics for this part

SpecificationTT49767E-TR
Bandwidth166 MHz
Filter TypeBand Pass
Frequency (Center)1.4 GHz
Height (Max)0.206 in
Impedance50 Ohm
Insertion Loss1.3 dB
Mounting TypeSurface Mount
Package / Case11-SMD Module
Size / Dimension Length0.83 in
Size / Dimension Width0.83 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
