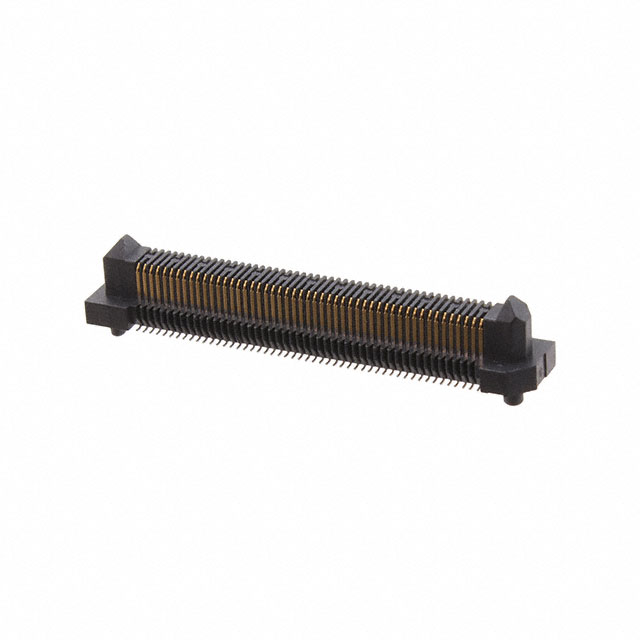

ERM5-050-02.0-L-DV-TR

Active

Samtec Inc.

CONN HDR 100POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ERM5-050-02.0-L-DV-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	4.85 mm
Height Above Board	0.191 in
Mated Stacking Heights	7 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Height Above Board	Height Above Board	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features
Samtec Inc. ERM5-050-02.0-L-DV-TR	100	Gold	0.5 mm	0.02 in	Header Outer Shroud Contacts	2	4.85 mm	0.191 in	7 mm 9 mm	10 Áin	0.25 Ám	Surface Mount	Board Guide
Samtec Inc. ERM5-050-05.0-L-DV-WT-TR	100	Gold	0.5 mm	0.02 in	Header Outer Shroud Contacts	2	7.85 mm	0.309 in	10 mm 12 mm	10 Áin	0.25 Ám	Surface Mount	Board Guide Solder Retention
Samtec Inc. ERM5-050-05.0-S-DV-K-TR	100	Gold	0.5 mm	0.02 in	Header Outer Shroud Contacts	2	7.85 mm	0.309 in	10 mm 12 mm	30 Áin	0.76 Ám	Surface Mount	Board Guide Pick and Place
Samtec Inc. ERM5-050-04.0-S-DV-TR	100	Gold	0.5 mm	0.02 in	Header Outer Shroud Contacts	2	6.85 mm	0.27 in	9 mm 11 mm	30 Áin	0.76 Ám	Surface Mount	Board Guide
Samtec Inc. ERM5-050-04.0-L-DV-TR	100	Gold	0.5 mm	0.02 in	Header Outer Shroud Contacts	2	6.85 mm	0.27 in	9 mm 11 mm	10 Áin	0.25 Ám	Surface Mount	Board Guide
Samtec Inc. ERM5-050-05.0-L-DV-K-TR	100	Gold	0.5 mm	0.02 in	Header Outer Shroud Contacts	2	7.85 mm	0.309 in	10 mm 12 mm	10 Áin	0.25 Ám	Surface Mount	Board Guide Pick and Place
Samtec Inc. ERM5-050-02.0-S-DV-P-TR	100	Gold	0.5 mm	0.02 in	Header Outer Shroud Contacts	2	4.85 mm	0.191 in	7 mm 9 mm	30 Áin	0.76 Ám	Surface Mount	Board Guide Pick and Place
