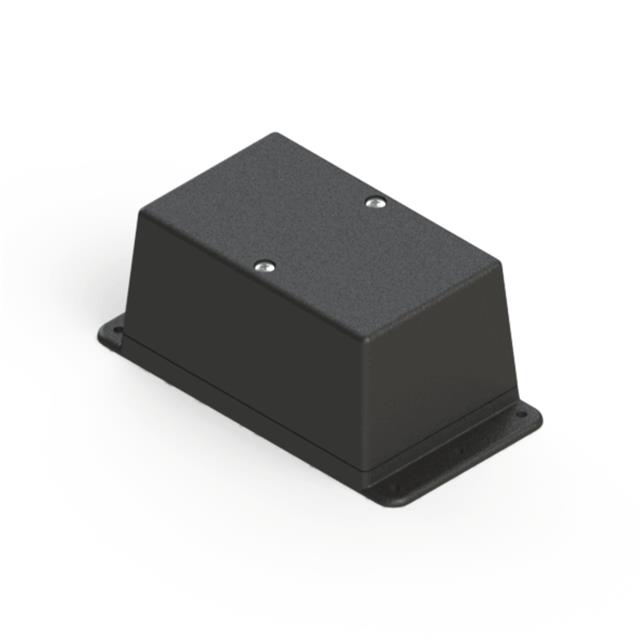

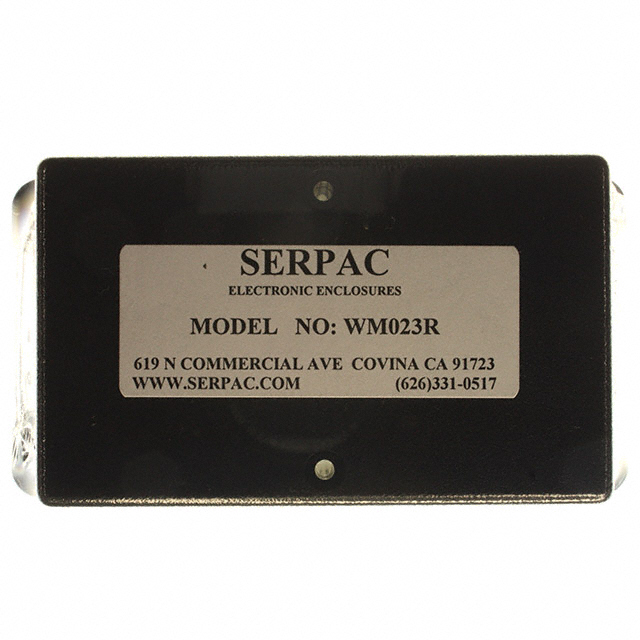

WM023R,BK
ActiveSerpac
BOX ABS BLACK 4.1"L X 2.6"W
Deep-Dive with AI
Search across all available documentation for this part.
WM023R,BK
ActiveSerpac
BOX ABS BLACK 4.1"L X 2.6"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WM023R,BK |
|---|---|
| Area (L x W) | 10.7 in² |
| Area (L x W) | 69 cm² |
| Color | Black |
| Container Type | Box |
| Design | Cover Included |
| Features | Mounting Flange, Wall Mount, PCB Supports, Front Access |
| Height [z] | 2.1 in |
| Height [z] | 53.34 mm |
| Material | Plastic, ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP40, NEMA 1 |
| Size / Dimension [x] | 104.14 mm |
| Size / Dimension [x] | 4.1 " |
| Size / Dimension [y] | 2.6 " |
| Size / Dimension [y] | 66.04 mm |
| Thickness | 2.54 mm |
| Thickness | 0.1 in |
| Weight | 0.187 lb |
| Weight | 84.82 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.71 | |
Description
General part information
WM023R,BK
Box Plastic, ABS Black Cover Included 4.100" L x 2.600" W (104.14mm x 66.04mm) X 2.100" (53.34mm)
Documents
Technical documentation and resources
No documents available
