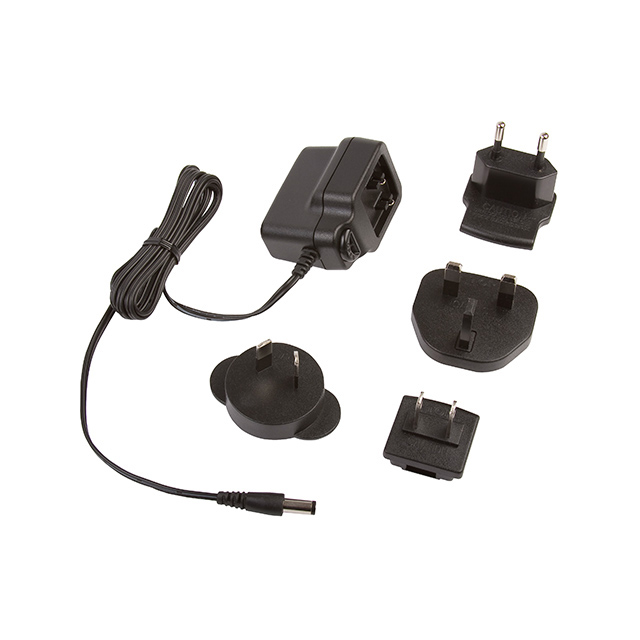

VER05US060-JA

Obsolete

XP Power

AC/DC WALL MOUNT ADAPTER 6V 5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VER05US060-JA

Obsolete

XP Power

AC/DC WALL MOUNT ADAPTER 6V 5W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VER05US060-JA	VER05 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB	CB
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	830 mA	1 - 830 A
Efficiency	Level V	Level VI, Level V
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	Multi-Blade	Multi-Blade (Included), Multi-Blade
Input Type	Multi-Blade (Included)	Multi-Blade (Included)
No Load Power Consumption	100 mW	100 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug, USB Mini
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [z]	12 mm	12 mm
Polarization	Positive Center	Positive Center
Power (Watts)	5 W	5 W
Region Utilized	International	International
Size / Dimension [x]	2.16 in	2.16 in
Size / Dimension [x]	54.9 mm	54.9 mm
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	37 mm	37 mm
Size / Dimension [z]	1.69 in	1.69 in
Size / Dimension [z]	42.9 mm	42.9 mm
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	6 V	5 - 12 V
Weight	0.28 lb	0.28 lb
Weight	127.01 g	127.01 g

VER05 Series

AC/DC WALL MOUNT ADAPTER 5V 5W

Part	Power (Watts)	Weight	Weight	Input Connector	Applications	Polarization	Output Connector	Output Connector [diameter]	Output Connector [z]	Input Type	Current - Output (Max) [Max]	Form	Operating Temperature [Max]	No Load Power Consumption	Approval Agency	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Voltage - Output	Standard Number	Cord Length	Cord Length
XP Power VER05US050-JA	5 W	0.28 lb	127.01 g	Multi-Blade (Included)	ITE (Commercial)	Positive Center	Barrel Plug	2.1 mm, 5.5 mm	12 mm	Multi-Blade (Included)	1 A	Wall Mount (Class II)	60 °C	100 mW	CB	Level VI	2.16 in	54.9 mm	1.45 in	1.69 in	42.9 mm	37 mm	90 VAC	264 VAC	International	5 V	62368-1	1.5 m	59 in
XP Power VER05US090-JA	5 W	0.28 lb	127.01 g	Multi-Blade	ITE (Commercial)	Positive Center	Barrel Plug	2.1 mm, 5.5 mm	12 mm	Multi-Blade (Included)	550 mA	Wall Mount (Class II)	60 °C	100 mW	CB	Level VI	2.16 in	54.9 mm	1.45 in	1.69 in	42.9 mm	37 mm	90 VAC	264 VAC	International	9 V	62368-1	1.5 m	59 in
XP Power VER05US120-JA	5 W	0.28 lb	127.01 g	Multi-Blade	ITE (Commercial)	Positive Center	Barrel Plug	2.1 mm, 5.5 mm	12 mm	Multi-Blade (Included)	420 mA	Wall Mount (Class II)	60 °C	100 mW	CB	Level VI	2.16 in	54.9 mm	1.45 in	1.69 in	42.9 mm	37 mm	90 VAC	264 VAC	International	12 V	62368-1	1.5 m	59 in
XP Power VER05US050-MB	5 W	0.28 lb	127.01 g	Multi-Blade	ITE (Commercial)		USB Mini			Multi-Blade (Included)	1 A	Wall Mount (Class II)	60 °C	100 mW	CB	Level VI	2.16 in	54.9 mm	1.45 in	1.69 in	42.9 mm	37 mm	90 VAC	264 VAC	International	5 V	62368-1	1.5 m	59 in
XP Power VER05US060-JA	5 W	0.28 lb	127.01 g	Multi-Blade	ITE (Commercial)	Positive Center	Barrel Plug	2.1 mm, 5.5 mm	12 mm	Multi-Blade (Included)	830 mA	Wall Mount (Class II)	60 °C	100 mW	CB	Level V	2.16 in	54.9 mm	1.45 in	1.69 in	42.9 mm	37 mm	90 VAC	264 VAC	International	6 V	62368-1	1.5 m	59 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VER05 Series

6V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
