2013-64G00S/033/127

Active

Oupiin

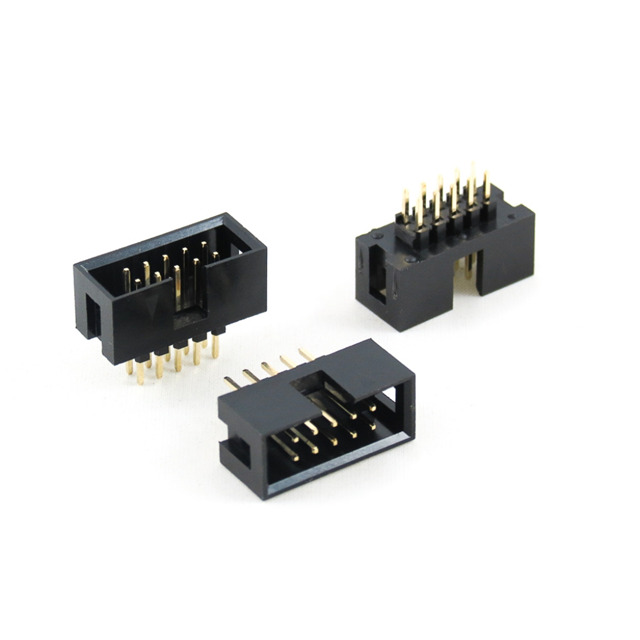

BOX HEADER, ELEVATED, STRAIGHT,

Search across all available documentation for this part.

Active

Oupiin

BOX HEADER, ELEVATED, STRAIGHT,

Technical Specifications

Parameters and characteristics for this part

Specification	2013-64G00S/033/127

Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	Flash
Length - Tail [x]	0.13 in
Length - Tail [x]	3.3 mm
Mounting Type	Through Hole
Number of Positions	64
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

BOX HEADER, ELEVATED, STRAIGHT,

Part	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Mounting Type	Length - Tail [x]	Length - Tail [x]	Number of Positions	Termination	Number of Rows	Contact Finish - Post (Mating)	Contact Finish Thickness - Post (Mating)
Oupiin 2013-64G00S/033/127	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	0.13 in	3.3 mm	64	Solder	2	Gold	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

64 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Technical documentation and resources

No documents available
