71M6531F-DB
ActiveAnalog Devices Inc./Maxim Integrated
BOARD DEMO 71M6531F
Deep-Dive with AI
Search across all available documentation for this part.
71M6531F-DB
ActiveAnalog Devices Inc./Maxim Integrated
BOARD DEMO 71M6531F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 71M6531F-DB | 71M6531 Series |
|---|---|---|
| Contents | Cable(s), Board(s), Power Supply | Cable(s), Board(s), Power Supply |
| Embedded | True | True |
| Function | Energy/Power Meter | Energy/Power Meter |
| Input Impedance | - | 90 kOhm |
| Input Impedance | - | 40 kOhm |
| Measurement Error | - | 0.1 % |
| Meter Type | - | Single Phase, Dual Phase |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 68-VFQFN Exposed Pad |
| Primary Attributes | Single Phase Power Meter | Single Phase Power Meter |
| Supplied Contents | Cable(s), Power Supply, Board(s) | Cable(s), Power Supply, Board(s) |
| Supplier Device Package | - | 68-SQFN (8x8) |
| Type | Power Management | Power Management |
| Utilized IC / Part | 71M6531 | 71M6531 |
| Voltage - I/O High | - | 2 V |
| Voltage - I/O Low | - | 0.8 V |
| Voltage - Supply | - | 3 V |
| Voltage - Supply | - | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
71M6531 Series
IC ENERGY METER 256KB 68-QFN
| Part | Input Impedance [Max] | Input Impedance [Min] | Measurement Error | Meter Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Voltage - I/O Low | Mounting Type | Voltage - I/O High | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Utilized IC / Part | Embedded | Primary Attributes | Supplied Contents | Function | Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated 71M6531F-IM/F | 90 kOhm | 40 kOhm | 0.1 % | Dual Phase, Single Phase | 3 V | 3.6 V | 0.8 V | Surface Mount | 2 V | 68-SQFN (8x8) | 85 °C | -40 °C | 68-VFQFN Exposed Pad | |||||||
Analog Devices Inc./Maxim Integrated 71M6531D-IM/F | 90 kOhm | 40 kOhm | 0.1 % | Dual Phase, Single Phase | 3 V | 3.6 V | 0.8 V | Surface Mount | 2 V | 68-SQFN (8x8) | 85 °C | -40 °C | 68-VFQFN Exposed Pad | |||||||
Analog Devices Inc./Maxim Integrated 71M6531F-DB | 71M6531 | Single Phase Power Meter | Board(s), Cable(s), Power Supply | Energy/Power Meter | Board(s), Cable(s), Power Supply | Power Management | ||||||||||||||
Analog Devices Inc./Maxim Integrated 71M6531F-IMR/F | 90 kOhm | 40 kOhm | 0.1 % | Dual Phase, Single Phase | 3 V | 3.6 V | 0.8 V | Surface Mount | 2 V | 68-SQFN (8x8) | 85 °C | -40 °C | 68-VFQFN Exposed Pad |
Description
General part information
71M6531 Series

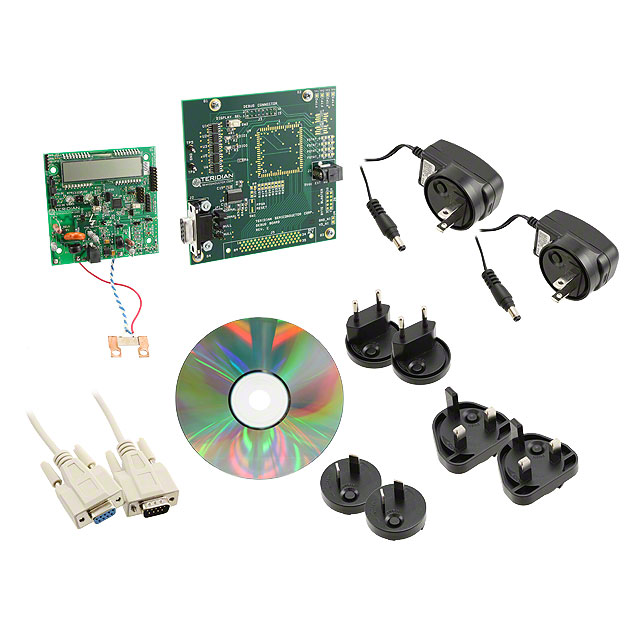

71M6531 Energy/Power Meter Power Management Evaluation Board
