ND411426
ActivePowerex Inc.
DIODE MOD GP 1400V 260A POWRBLOK
ND411426
ActivePowerex Inc.
DIODE MOD GP 1400V 260A POWRBLOK
Description
General part information
ND411426

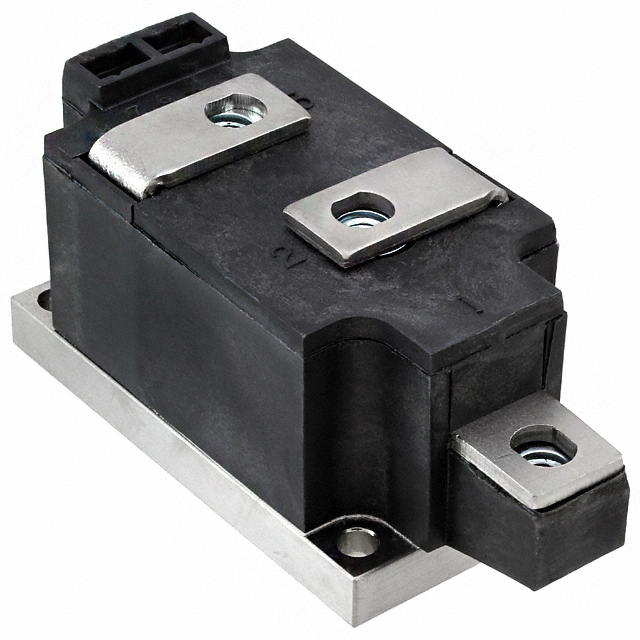

Diode Array 1 Pair Series Connection 1400 V 260A Chassis Mount POW-R-BLOK™ Module
Technical Specifications
Parameters and characteristics for this part
| Specification | ND411426 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 260 A |
| Current - Reverse Leakage | 50 mA |
| Diode Configuration | Series Connection |
| Diode Pair Count | 1 pair |
| Mounting Type | Chassis Mount |
| Package / Case | POW-R-BLOK™ Module |
| Package Name | POW-R-BLOK™ Module |
| Speed | Standard Recovery |
| Speed - Fast Recovery (Minimum) | 200 mA, 500 ns |
| Speed - Recovery Current | 200 mA, 200 mA |
| Speed - Recovery Time | 500 ns |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1400 V |
| Voltage - Forward (Vf) (Max) | 1.35 V |
