9553 0601000

Active

Belden Inc.

MULTI-PAIR 6COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9553 0601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	10.44 mm
Jacket (Insulation) Diameter [diameter]	0.411 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Wire Gauge	18 AWG

Part	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Shield Coverage	Cable Type	Length	Length	Features	Usage	Shield Type	Number of Conductors	Wire Gauge	Jacket (Insulation) Material
Belden Inc. 9553 0601000	Poly-Vinyl Chloride (PVC)	1.346 mm	0.053 in	-30 ░C	105 ░C	Aluminum	10.44 mm	0.411 in	Chrome	19	30 AWG	Copper Tinned	100 %	Multi-Pair	1000 ft	304.8 m	Drain Wire Rip Cord	Instrumentation	Foil	6	18 AWG	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 6.57

General part information

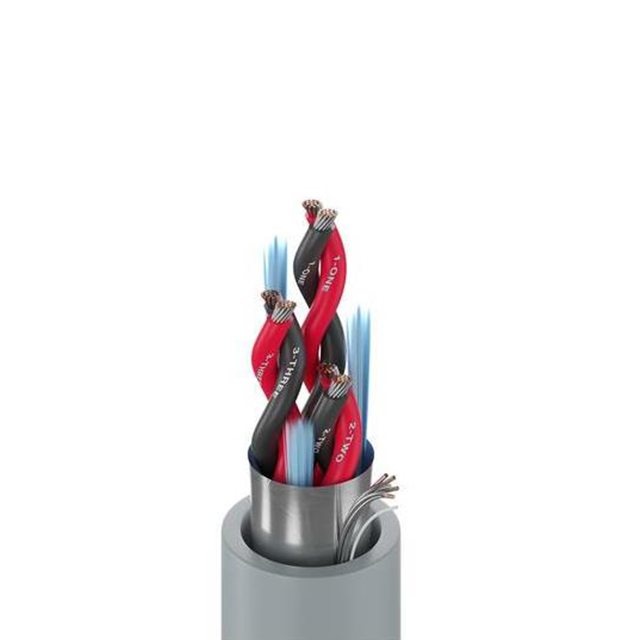

6 (3 Pair) Conductor Multi-Pair Cable Chrome 18 AWG Foil 1000.0' (304.8m)
