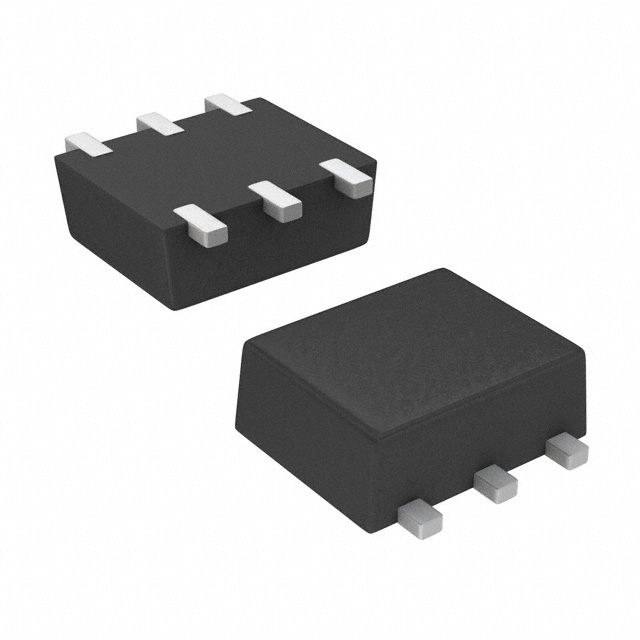

DG2011DXA-T1-E3

Obsolete

Vishay Siliconix

IC SWITCH SPDT X 1 2.7OHM SC89-6

Search across all available documentation for this part.

Obsolete

Vishay Siliconix

IC SWITCH SPDT X 1 2.7OHM SC89-6

Technical Specifications

Parameters and characteristics for this part

Specification	DG2011DXA-T1-E3

Channel Capacitance (CS(off), CD(off)) [custom]	29 pF
Channel Capacitance (CS(off), CD(off)) [custom]	29 pF
Channel-to-Channel Matching (ΔRon)	200 mOhm
Charge Injection	2 pC
Crosstalk	-69 dB
Current - Leakage (IS(off)) (Max)	1 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max) [Max]	2.7 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	SOT-666, SOT-563
Supplier Device Package	SC-89-6 (SOT-666)
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [custom]	59 ns
Switch Time (Ton, Toff) (Max) [custom]	75 ns
Voltage - Supply, Single (V+) [Max]	5.5 V
Voltage - Supply, Single (V+) [Min]	1.8 V

IC SWITCH SPDT X 1 2.7OHM SC89-6

Part	Multiplexer/Demultiplexer Circuit	Number of Circuits	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Switch Circuit	Charge Injection	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Current - Leakage (IS(off)) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Crosstalk	Supplier Device Package	Channel-to-Channel Matching (ΔRon)	Package / Case	Mounting Type	On-State Resistance (Max) [Max]
Vishay Siliconix DG2011DXA-T1-E3	2:1	1	29 pF	29 pF	SPDT	2 pC	1.8 V	5.5 V	1 nA	85 °C	-40 °C	59 ns	75 ns	-69 dB	SC-89-6 (SOT-666)	200 mOhm	SOT-563, SOT-666	Surface Mount	2.7 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Circuit IC Switch 2:1 2.7Ohm SC-89-6 (SOT-666)
