8404 060U1000

Active

Belden Inc.

4 #20 PE SHLD PVC

Search across all available documentation for this part.

Active

Belden Inc.

4 #20 PE SHLD PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8404 060U1000

Cable Type	Microphone
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Jacket (Insulation) Diameter [diameter]	0.252 in
Jacket (Insulation) Diameter [diameter]	6.4 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	AWM Style 2094
Shield Coverage	85 %
Shield Material	Viscose; Copper, Tinned
Shield Type	Double Braid
Usage	Audio
Voltage	300 V
Wire Gauge	20 AWG

Part	Conductor Material	Ratings	Conductor Insulation	Voltage	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Shield Material	Usage	Cable Type	Length	Length	Shield Type	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Wire Gauge
Belden Inc. 8404 060U1000	Copper Tinned	AWM Style 2094	Polyethylene (PE)	300 V	85 %	19	32 AWG	0.252 in	6.4 mm	4	Viscose; Copper Tinned	Audio	Microphone	1000 ft	304.8 m	Double Braid	Chrome	-20 C	60 °C	Poly-Vinyl Chloride (PVC)	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.18

General part information

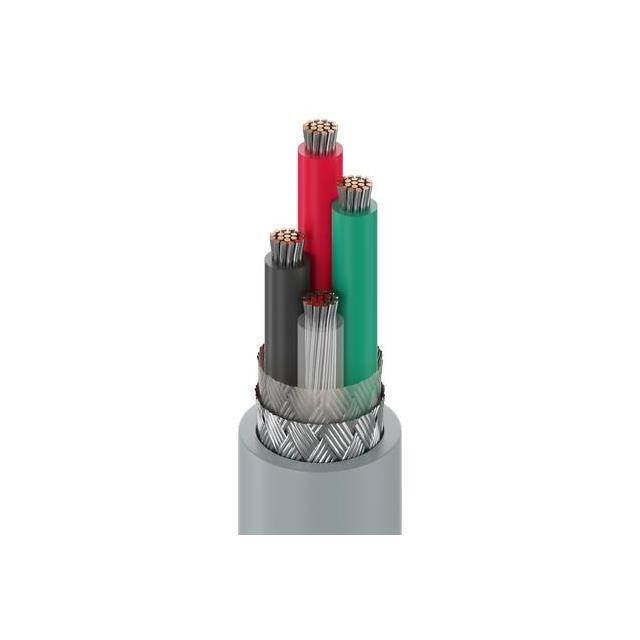

4 (1 Quad) Conductor Microphone Cable Chrome 20 AWG Double Braid 1000.0' (304.8m)
