10236-0210EC - 10236-0210EC

10236-0210EC

Active
3M

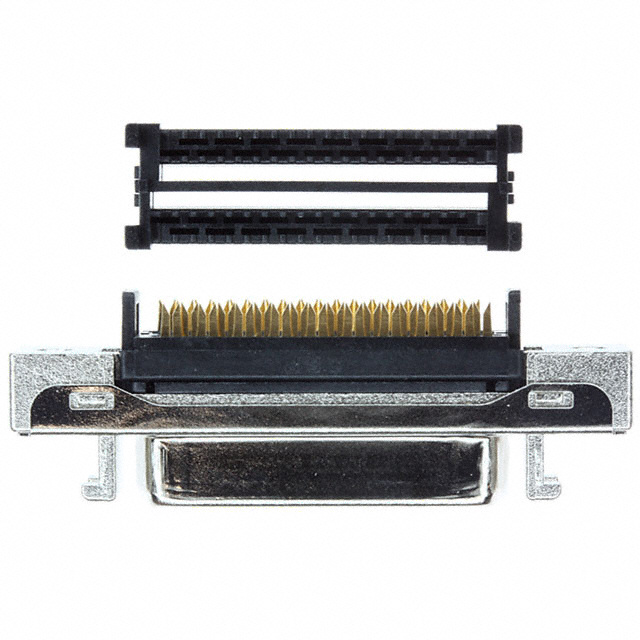

D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), RECEPTACLE, 102 SERIES, 36 CONTACTS, IDC / IDT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMDR Selection GuideInterconnect Catalog+2
10236-0210EC - 10236-0210EC

10236-0210EC

Active
3M

D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), RECEPTACLE, 102 SERIES, 36 CONTACTS, IDC / IDT

Deep-Dive with AI

DocumentsMDR Selection GuideInterconnect Catalog+2

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification10236-0210EC10236 Series
Connector Style-Outer Shroud Contacts
Connector Type-Receptacle
Contact Finish-Gold
Contact Finish Thickness-0.203 - 0.76 Ám
Contact Finish Thickness-8 - 30 Áin
Features-Shielded, Board Lock, Board Guide, Latch Lock
Flange Feature-Housing/Shell (4-40), Latchblocks, Housing/Shell
Flange Feature-2.6 M
Mounting Type-Through Hole, Right Angle, Panel Mount, Surface Mount, Through Hole, Right Angle, Free Hanging (In-Line)
null-
Number of Positions-36
Number of Rows-2
Termination-Solder, Press-Fit, IDC
