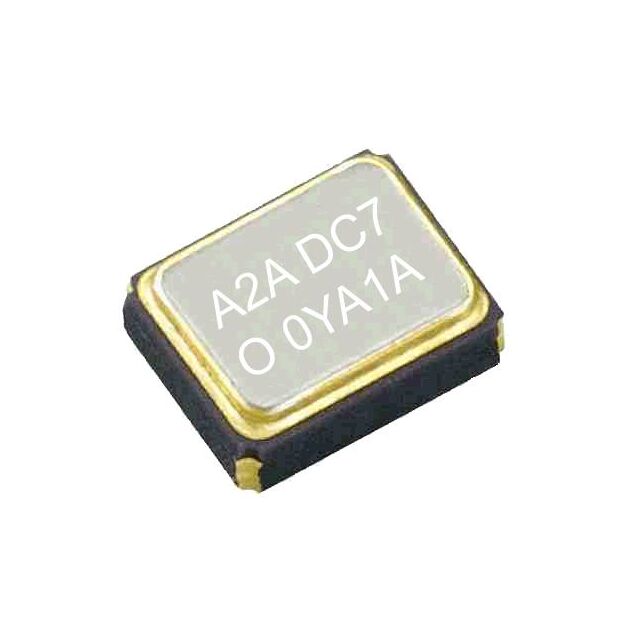

TG2016SMN 52.0000M-MCGNNM0

Active

EPSON

TG2016SMN 52.0000M-MCGNNM0: TCXO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TG2016SMN 52.0000M-MCGNNM0

Active

EPSON

TG2016SMN 52.0000M-MCGNNM0: TCXO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.55

Description

General part information

TG2016SMN Series

52 MHz TCXO Clipped Sine Wave Oscillator 1.7V ~ 3.63V 4-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TG2016SMN 52.0000M-MCGNNM0	TG2016SMN Series

Base Resonator	Crystal	Crystal
Current - Supply (Max) [Max]	2.1 mA	1.5 - 2.1 mA
Frequency	52 MHz	10 - 52 MHz
Frequency Stability	500 ppb	500 ppb
Height - Seated (Max) [Max] [z]	0.73 mm	0.73 mm
Height - Seated (Max) [Max] [z]	0.029 in	0.029 in
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	Clipped Sine Wave	Clipped Sine Wave
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [x]	0.079 in	0.079 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	4-SMD (2x1.6)	4-SMD (2x1.6)
Type	TCXO	TCXO, VCTCXO
Voltage - Supply [Max]	3.63 V	3.3 - 3.63 V
Voltage - Supply [Min]	1.7 V	1.7 - 1.8 V

TG2016SMN Series

TG2016SMN 16.3680M-ECGNNM5: TCXO

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Supply (Max) [Max]	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency Stability	Base Resonator	Package / Case	Output	Mounting Type	Type	Supplier Device Package
EPSON TG2016SMN 16.3680M-ECGNNM5	85 °C	-40 °C	2 mm	0.063 in	1.6 mm	0.079 in	1.5 mA	16.368 MHz	0.73 mm	0.029 in	1.7 V	3.63 V	500 ppb	Crystal	4-SMD, No Lead	Clipped Sine Wave	Surface Mount	TCXO
EPSON TG2016SMN 27.6000M-MCGNNM0	85 °C	-40 °C	2 mm	0.063 in	1.6 mm	0.079 in	1.8 mA	27.6 MHz	0.73 mm	0.029 in	1.7 V	3.63 V	500 ppb	Crystal	4-SMD, No Lead	Clipped Sine Wave	Surface Mount	TCXO
EPSON TG2016SMN 48.0000M-TCGNNM0	85 °C	-40 °C	2 mm	0.063 in	1.6 mm	0.079 in	2 mA	48 MHz	0.73 mm	0.029 in	1.8 V	3.3 V	500 ppb	Crystal	4-SMD, No Lead	Clipped Sine Wave	Surface Mount	TCXO	4-SMD (2x1.6)
EPSON TG2016SMN 48.0000M-MCGNNM3	85 °C	-40 °C	2 mm	0.063 in	1.6 mm	0.079 in	2 mA	48 MHz	0.73 mm	0.029 in	1.7 V	3.63 V	500 ppb	Crystal	4-SMD, No Lead	Clipped Sine Wave	Surface Mount	TCXO	4-SMD (2x1.6)
EPSON TG2016SMN 40.0000M-ECGNNM5	85 °C	-40 °C	2 mm	0.063 in	1.6 mm	0.079 in	1.8 mA	40 MHz	0.73 mm	0.029 in	1.7 V	3.63 V	500 ppb	Crystal	4-SMD, No Lead	Clipped Sine Wave	Surface Mount	TCXO	4-SMD (2x1.6)
EPSON TG2016SMN 16.0000M-ECGNNM3	85 °C	-40 °C	2 mm	0.063 in	1.6 mm	0.079 in	1.5 mA	16 MHz	0.73 mm	0.029 in	1.7 V	3.63 V	500 ppb	Crystal	4-SMD, No Lead	Clipped Sine Wave	Surface Mount	TCXO
EPSON TG2016SMN 19.2000M-ECGNNMB	85 °C	-40 °C	2 mm	0.063 in	1.6 mm	0.079 in	1.5 mA	19.2 MHz	0.73 mm	0.029 in	1.7 V	3.63 V	500 ppb	Crystal	4-SMD, No Lead	Clipped Sine Wave	Surface Mount	TCXO
EPSON TG2016SMN 27.0000M-MCGNNMB	85 °C	-40 °C	2 mm	0.063 in	1.6 mm	0.079 in	1.8 mA	27 MHz	0.73 mm	0.029 in	1.7 V	3.63 V	500 ppb	Crystal	4-SMD, No Lead	Clipped Sine Wave	Surface Mount	TCXO
EPSON TG2016SMN 20.0000M-MCGNNM3	85 °C	-40 °C	2 mm	0.063 in	1.6 mm	0.079 in	1.5 mA	20 MHz	0.73 mm	0.029 in	1.7 V	3.63 V	500 ppb	Crystal	4-SMD, No Lead	Clipped Sine Wave	Surface Mount	TCXO
EPSON TG2016SMN 27.6000M-ECGNNM5	85 °C	-40 °C	2 mm	0.063 in	1.6 mm	0.079 in	1.8 mA	27.6 MHz	0.73 mm	0.029 in	1.7 V	3.63 V	500 ppb	Crystal	4-SMD, No Lead	Clipped Sine Wave	Surface Mount	TCXO
