1301.9319.24

Active

SCHURTER Inc.

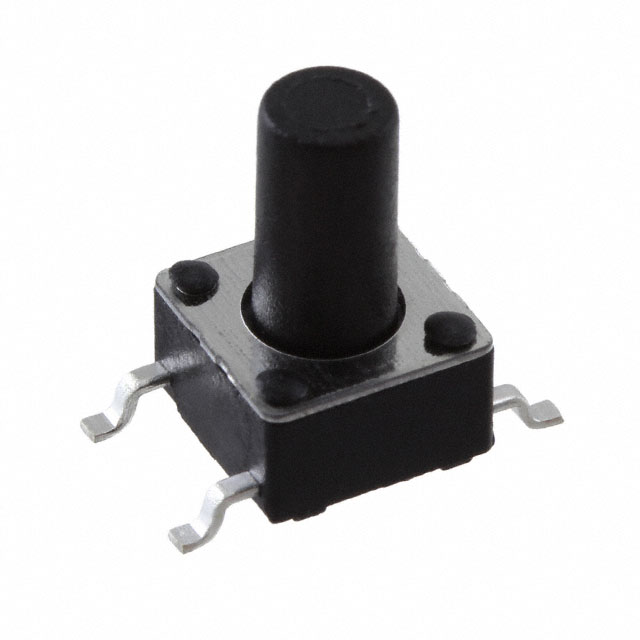

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	1301.9319.24

Actuator Height off PCB, Vertical	9.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Ingress Protection	IP40
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Features	Actuator Orientation	Contact Rating @ Voltage	Mechanical Life	Actuator Height off PCB, Vertical	Actuator Type	Termination Style	Mounting Type	Ingress Protection	Illumination	Circuit	Outline [y]	Outline [x]	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]
SCHURTER Inc. 1301.9319.24	0.25 mm	Tactile Feedback	Top Actuated	0.05 A, 12 VDC	100000 Cycles	9.5 mm	Standard	Gull Wing	Surface Mount	IP40	Non-Illuminated	SPST-NO	6 mm	6 mm	Off-Mom	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.37
	Digi-Reel®	1	$ 0.37
	Tape & Reel (TR)	400	$ 0.37

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
