Description
General part information

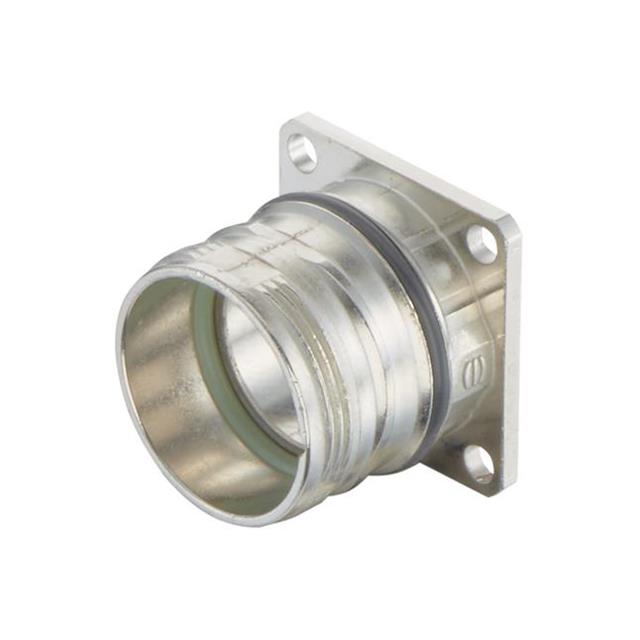

09151000302
Position Circular Connector Insert Shell Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 09151000302 |
|---|---|
| Connector Type | Insert Shell |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67, IP69K |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included, Insert Not Included |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Shell Finish | Nickel |
| Shell Material | Copper Zinc Alloy |
| Shell Size - Insert | M23 |
| Shielding | Unshielded |
