ESP32-S2-DEVKITM-1U

Active

Espressif Systems

ESP32-S2-MINI-1U DEV BRD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.09

Description

General part information

ESP32-S2 Series

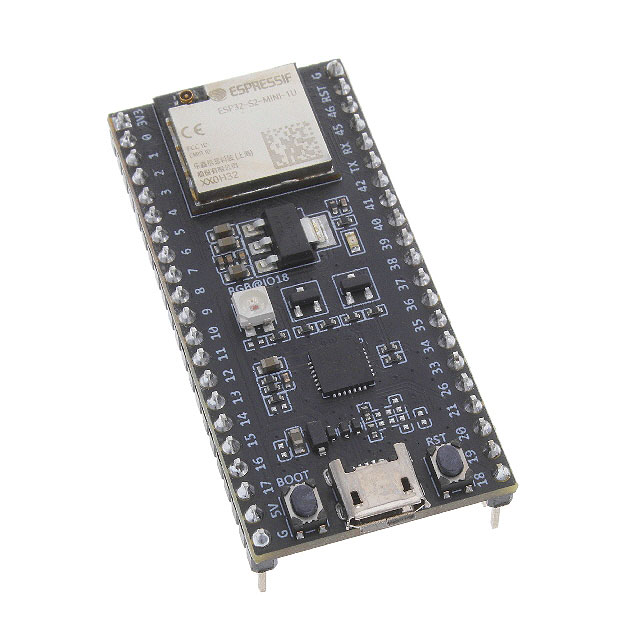

The Espressif Systems ESP32-S2-DEVKITM-1U Evaluation Board is a development platform for RF, RFID, and wireless applications. It features the ESP32-S2-MINI-1 transceiver with 802.11 b/g/n Wi-Fi operating at 2.4GHz, making it ideal for wireless communication projects. Powered by a 32-bit Xtensa single-core processor running at 240MHz, the board handles complex tasks with ease.

Documents

Technical documentation and resources

No documents available

Specification	ESP32-S2-DEVKITM-1U	ESP32-S2 Series

Antenna Type	-	Antenna Not Included, U.FL, PCB Trace, Antenna Not Included
Contents	Board(s)	Board(s)
Current - Receiving	-	63 mA
Current - Receiving	-	68 mA
Current - Transmitting	-	310 mA
Current - Transmitting	-	160 - 165 mA
Data Rate	-	150 Mbps
For Use With/Related Products	-	ESP32-S2-WROVER, ESP32-S2, ESP32-S2-WROOM
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.484 GHz
Frequency	-	2.412 GHz
Memory Size	-	2 - 336 MB
Memory Size	-	4 MB
Memory Size	-	320 - 336 kB
Memory Size	-	128 kB
Memory Size	-	2 MB
Mounting Type	-	Surface Mount
Operating Temperature	-	85 - 125 °C
Operating Temperature	-	-40 °C
Package / Case	-	56-VFQFN Exposed Pad, 40-SMD Module, 41-SMD Module, 56-SMD Module
Power - Output	-	19.5 dBm
Protocol	-	802.11b/g/n
RF Family/Standard	-	WiFi
Sensitivity	-	-97 dBm
Serial Interfaces	-	UART, ADC, GPIO, USB, PWM, I2C, SPI, I2S
Supplied Contents	-	Board(s)
Type	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)	Transceiver, 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Utilized IC / Part	ESP32-S2	ESP32-S2, ESP32-S2R2, ESP32-S2FN4R2, ESP32-S2FH4
Voltage - Supply	-	2.8 - 3 V
Voltage - Supply	-	3.6 V
