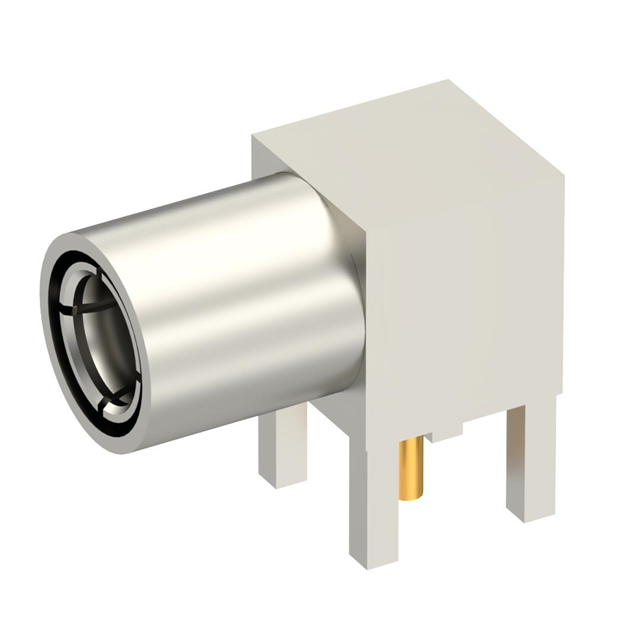

2042-7511-000

Active

Radiall USA, Inc.

SMB F RA BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB F RA BHD

Technical Specifications

Parameters and characteristics for this part

Specification	2042-7511-000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Center Contact Material	Housing Color	Number of Ports	Frequency - Max [Max]	Body Finish	Impedance	Connector Type	Body Material	Mating Cycles	Fastening Type	Contact Termination	Dielectric Material	Shield Termination	Center Contact Plating	Mounting Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. 2042-7511-000	Beryllium Copper	Silver	1	4 GHz	Nickel	50 Ohms	Female Socket Plug	Brass	500	Snap-On	Solder	Polytetrafluoroethylene (PTFE)	Solder	Gold	Through Hole Right Angle	SMB	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Through Hole, Right Angle Solder

Technical documentation and resources

No documents available
