2254 SL001

Active

ALPHA WIRE

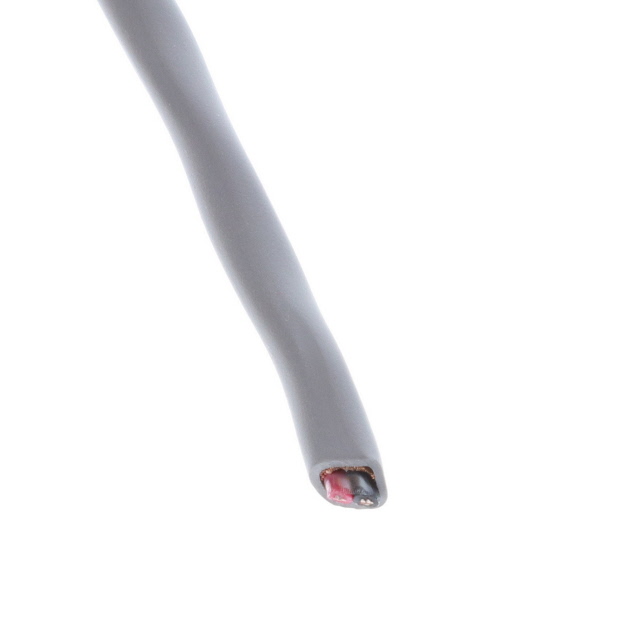

CABLE 2COND 22AWG SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 22AWG SHLD 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2254 SL001	2254 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	500 '
Length	-	152.4 m
Number of Conductors	2	2
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	95 %	95 %
Shield Material	Copper, Bare	Copper, Bare
Shield Type	Spiral	Spiral
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

CABLE 2COND 22AWG SHLD 1000'

Part	Voltage	Conductor Insulation	Shield Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Wire Gauge	Number of Conductors	Usage	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 2254 SL001	300 V	Poly-Vinyl Chloride (PVC)	Spiral	Copper, Tinned	7	30 AWG	1000 ft	304.8 m	22 AWG	2	Communication, Control	Copper, Bare	0.02 in	0.508 mm	Multi-Conductor	Poly-Vinyl Chloride (PVC)	-20 C	80 C	95 %	Slate
ALPHA WIRE 2254 SL002	300 V	Poly-Vinyl Chloride (PVC)	Spiral	Copper, Tinned	7	30 AWG			22 AWG	2	Communication, Control	Copper, Bare	0.02 in	0.508 mm	Multi-Conductor	Poly-Vinyl Chloride (PVC)	-20 C	80 C	95 %	Slate	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Slate 22 AWG Spiral 1000.0' (304.8m)
