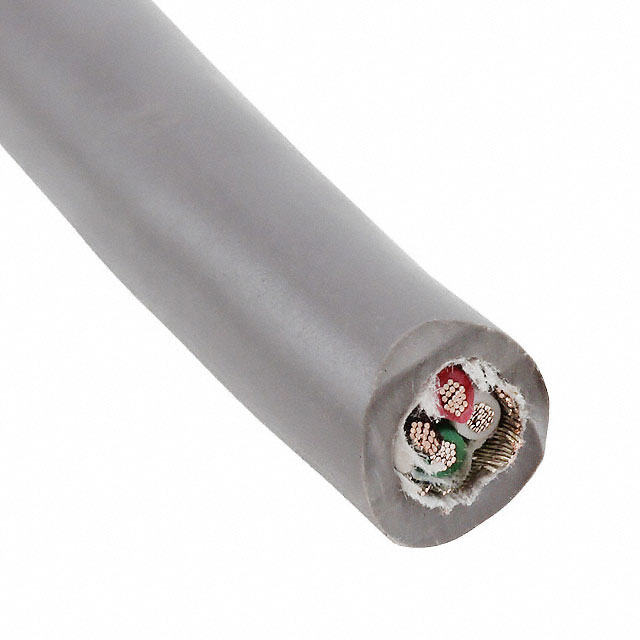

1715 SL001
ActiveALPHA WIRE
CABLE 4COND 20AWG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
1715 SL001
ActiveALPHA WIRE
CABLE 4COND 20AWG SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1715 SL001 | 1715 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Polyethylene (PE) | Polyethylene (PE) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand | 34 AWG, 26 | 26 - 34 AWG |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in | 0.035 in |
| Jacket Color | Slate | Slate |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 m |
| Length | - | 100 - 500 ' |
| Length | - | 30.5 - 152.4 m |
| Number of Conductors | 4 | 4 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Shield Coverage | 85 % | 85 % |
| Shield Material | Copper, Tinned | Copper, Tinned |
| Shield Type | Braid | Braid |
| Usage | Control, Communication | Control, Communication |
| Voltage | 600 V | 600 V |
| Wire Gauge | 20 AWG | 20 AWG |
1715 Series
MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 4 CONDUCTOR, 20 AWG, 0.52 MM², 500 FT, 152.4 M
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Cable Type | Voltage | Conductor Insulation | Shield Type | Usage | Wire Gauge | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand | Shield Coverage | Jacket (Insulation) Material | Shield Material | Conductor Material | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 1715 SL002 | -20 C | 60 °C | 500 ' | 152.4 m | Multi-Conductor | 600 V | Polyethylene (PE) | Braid | Communication, Control | 20 AWG | Slate | 0.889 mm | 0.035 in | 26, 34 AWG | 85 % | Poly-Vinyl Chloride (PVC) | Copper, Tinned | Copper, Tinned | 4 | ||
ALPHA WIRE 1715 SL001 | -20 C | 60 °C | Multi-Conductor | 600 V | Polyethylene (PE) | Braid | Communication, Control | 20 AWG | Slate | 0.889 mm | 0.035 in | 26, 34 AWG | 85 % | Poly-Vinyl Chloride (PVC) | Copper, Tinned | Copper, Tinned | 4 | 1000 ft | 304.8 m | ||
ALPHA WIRE 1715 SL005 | -20 C | 60 °C | 100 ft | 30.5 m | Multi-Conductor | 600 V | Polyethylene (PE) | Braid | Communication, Control | 20 AWG | Slate | 0.889 mm | 0.035 in | 26, 34 AWG | 85 % | Poly-Vinyl Chloride (PVC) | Copper, Tinned | Copper, Tinned | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 3.23 | |
Description
General part information
1715 Series
4 Conductor Multi-Conductor Cable Slate 20 AWG Braid 1000.0' (304.8m)
