1001312-01

Active

KYOCERA AVX

EVAL BOARD FOR 1001312

Search across all available documentation for this part.

Active

KYOCERA AVX

EVAL BOARD FOR 1001312

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1001312-01	1001312 Series

Antenna Type	-	Chip
Applications	-	WLAN, Bluetooth, Wi-Fi, Zigbee™
For Use With/Related Products	1001312	1001312
Frequency [Max]	2.485 GHz	2.485 GHz
Frequency [Min]	2.4 GHz	2.4 GHz
Frequency Range	-	2.5 GHz
Frequency Range	-	2.4 GHz
Gain	-	1.72 dBi
Height (Max)	-	0.022 in
Height (Max)	-	0.55 mm
Mounting Type	-	Surface Mount
Number of Bands	-	1
RF Family/Standard	-	WiFi, Bluetooth, 802.15.4
Supplied Contents	Board(s)	Board(s)
Termination	-	Solder
Type	Antenna	Antenna
VSWR	-	1.8

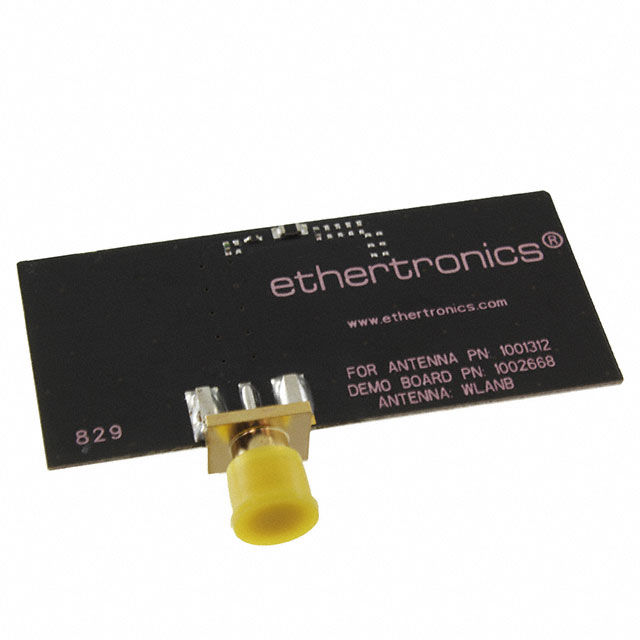

EVAL BOARD FOR 1001312

Part	Supplied Contents	For Use With/Related Products	Type	Frequency [Min]	Frequency [Max]	Mounting Type	RF Family/Standard	Termination	Applications	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	VSWR	Height (Max) [Max]	Height (Max)	Gain	Antenna Type
KYOCERA AVX 1001312-01	Board(s)	1001312	Antenna	2.4 GHz	2.485 GHz
KYOCERA AVX 1001312						Surface Mount	802.15.4, Bluetooth, WiFi	Solder	Bluetooth, Wi-Fi, WLAN, Zigbee™	2.5 GHz	2.4 GHz	1	1.8	0.022 in	0.55 mm	1.72 dBi	Chip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1001312 - Antenna 2.4GHz ~ 2.485GHz Evaluation Board
