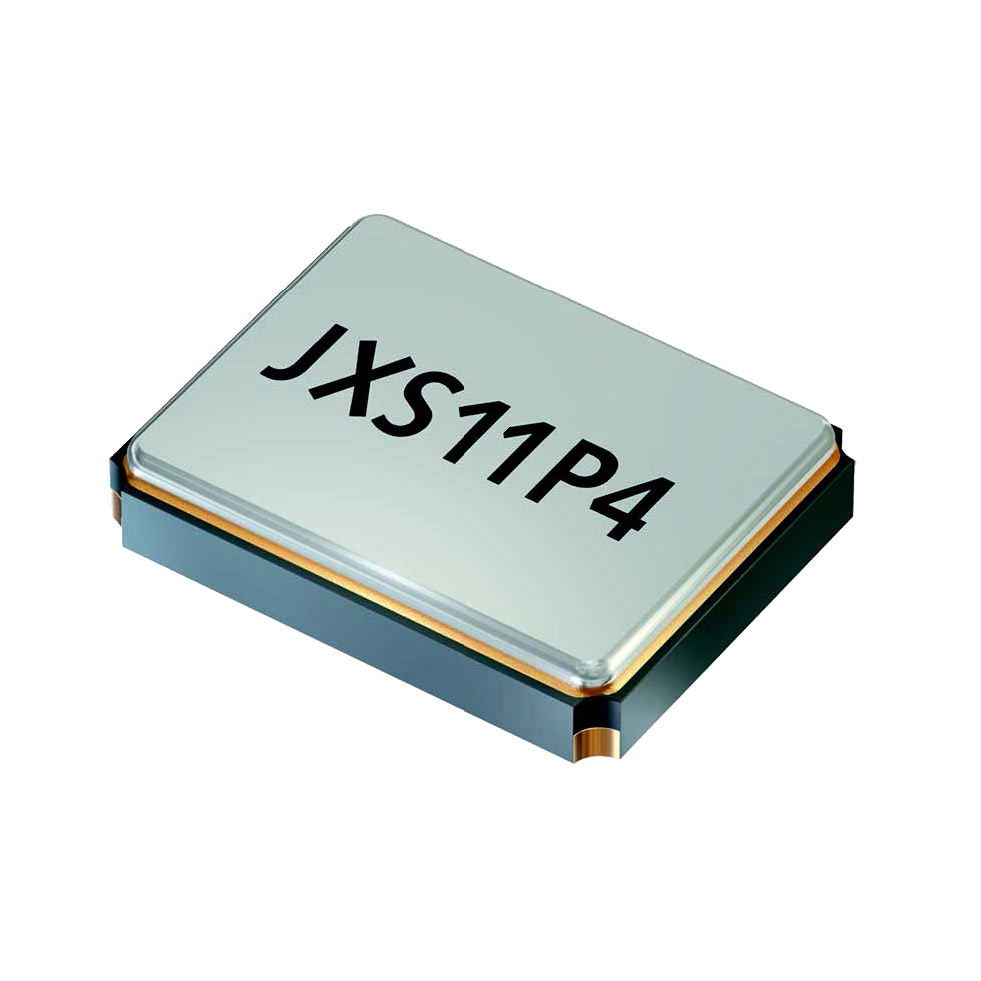

Q 48,0-JXS11P4-12-10/30-T2-FU-AEC-LF
ActiveJauch Quartz
CRYSTAL 48.0000MHZ 12PF SMD
Q 48,0-JXS11P4-12-10/30-T2-FU-AEC-LF
ActiveJauch Quartz
CRYSTAL 48.0000MHZ 12PF SMD
Description
General part information
Q 48,0-JXS11P4-12-10/30-T2-FU-AEC-LF
48 MHz ±10ppm Crystal 12pF 60 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | Q 48,0-JXS11P4-12-10/30-T2-FU-AEC-LF |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohm |
| Frequency | 48 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.016 in |
| Load Capacitance | 12 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.047 in |
| Type | MHz Crystal |
