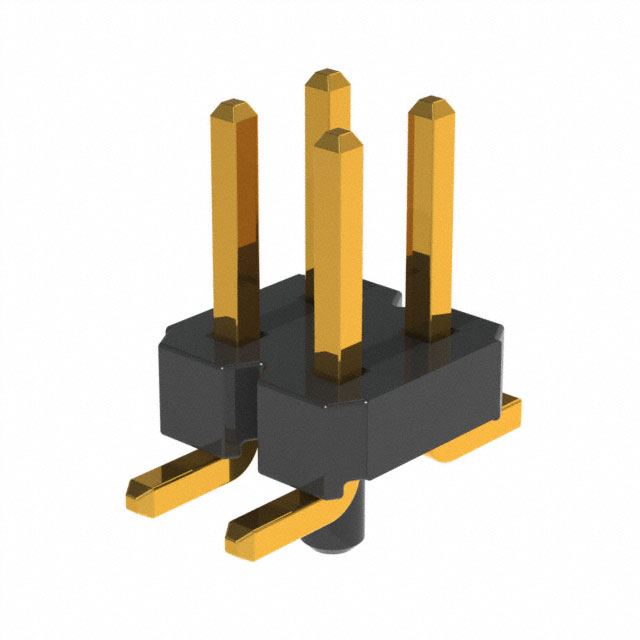

CONN HEADER SMD 4POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
NRPN022MAMP-RC
ActiveSullins Connector Solutions
CONN HEADER SMD 4POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NRPN022MAMP-RC |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 0.141 in |
| Contact Length - Mating | 3.6 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 150 VDC |
NRPN022 Series
| Part | Style | Contact Finish - Mating | Contact Material | Contact Shape | Insulation Color | Contact Finish Thickness - Mating | Number of Positions Loaded | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Fastening Type | Insulation Material | Pitch - Mating [x] | Pitch - Mating [x] | Shrouding | Contact Length - Mating | Contact Length - Mating | Features | Contact Finish Thickness - Post | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Material Flammability Rating | Current Rating (Amps) | Voltage Rating | Contact Finish - Post | Number of Positions | Number of Rows | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Board to Board Cable | Gold | Brass | Square | Black | Flash | All | Male Pin | -40 °C | 105 ░C | 1.5 mm | 0.059 " | Push-Pull | Nylon 6T Polyamide (PA6T) | 0.079 in | 2 mm | Unshrouded | 0.141 in | 3.6 mm | Pick and Place | Flash | Surface Mount | 0.079 in | 2 mm | Header | UL94 V-0 | 2 A | 150 VDC | Gold | 4 | 2 | Solder |
Sullins Connector Solutions | Board to Board Cable | Gold | Brass | Square | Black | Flash | All | Male Pin | -40 °C | 105 ░C | 1.5 mm | 0.059 " | Push-Pull | Nylon 6T Polyamide (PA6T) | 0.079 in | 2 mm | Unshrouded | 0.141 in | 3.6 mm | Flash | Surface Mount | 0.079 in | 2 mm | Header | UL94 V-0 | 2 A | 150 VDC | Gold | 4 | 2 | Solder | |
Sullins Connector Solutions | Board to Board Cable | Gold | Brass | Square | Flash | All | Male Pin | -40 °C | 105 ░C | 1.5 mm | 0.059 " | Push-Pull | Nylon 6T Polyamide (PA6T) | 0.079 in | 2 mm | Unshrouded | 0.141 in | 3.6 mm | Board Guide | Flash | Surface Mount | 0.079 in | 2 mm | Header | UL94 V-0 | 2 A | 150 VDC | Gold | 4 | 2 | Solder |
