09120022701
ActiveHARTING Technology Group

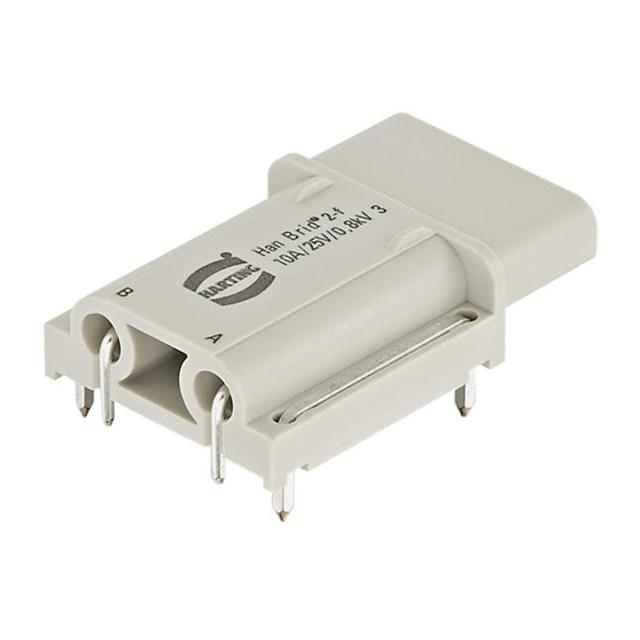

HAN BRID-FEMALE-C CU-BUS-MODULE(G) ROHS COMPLIANT: NA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09120022701 |
|---|---|
| Color | Gray |
| Connector Type | Module |
| Contact Type | Han® D |
| Current Rating (Amps) | 10 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 3 A |
| Termination Style | Crimp |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09120022701
Female Module Gray 2 Position Crimp
