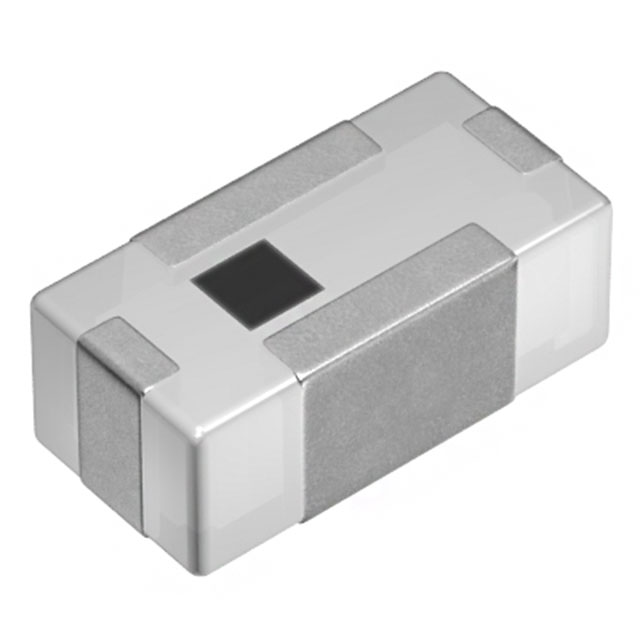

DEA160710LT-5023B1
ActiveTDK Corporation
LOW PASS FILTER, 470MHZ TO 770MHZ ROHS COMPLIANT: YES
DEA160710LT-5023B1
ActiveTDK Corporation
LOW PASS FILTER, 470MHZ TO 770MHZ ROHS COMPLIANT: YES
Description
General part information
DEA160710LT-5023B1
Frequency Low Pass RF Filter (Radio Frequency) 30MHz Bandwidth 1dB 0603 (1608 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | DEA160710LT-5023B1 |
|---|---|
| Bandwidth | 30 MHz |
| Filter Type | Low Pass |
| Height (Max) | 0.018 in |
| Insertion Loss | 1 dB |
| Mounting Type | Surface Mount |
| Package Name | 0603 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
