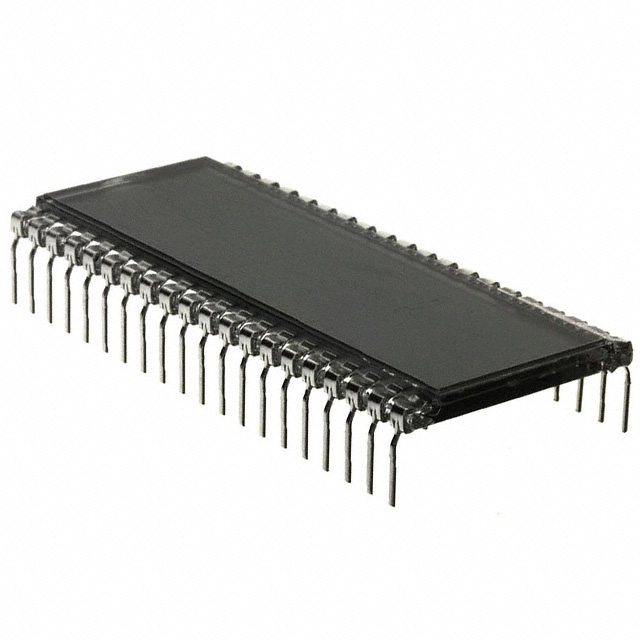

LCD-S4X1C35TR

Active

Lumex Opto/Components Inc.

LCD MOD 4.5DIG 4.5 X 1 REFLECTIV

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 4.5DIG 4.5 X 1 REFLECTIV

Technical Specifications

Parameters and characteristics for this part

LCD MOD 4.5DIG 4.5 X 1 REFLECTIV

Part	Backlight	Number of Characters	Display Mode	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Background Color	Display Type	Viewing Area [x]	Viewing Area [y]	Character Size [z]	Character Size [y]	Display Format [x]	Display Format [y]	Character Format
Lumex Opto/Components Inc. LCD-S4X1C35TR	Without Backlight	4.5	Reflective	50.8 mm	2.8 mm	23.5 mm	Gray	TN - Twisted Nematic	46.8 mm	14.4 mm	8.89 mm	5.08 mm	4.5	1	7-Segment

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 50.80mm x 23.50mm x 2.80mm

Technical documentation and resources

No documents available
