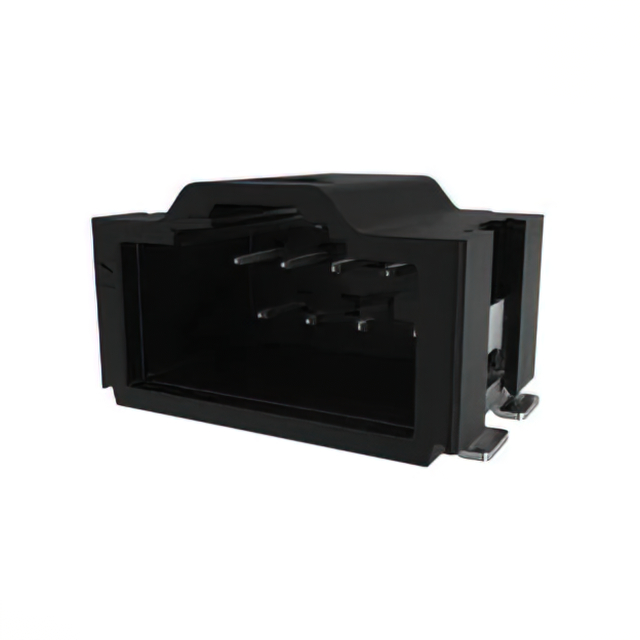

10155500-A208KLF - 10155500-A208KLF

10155500-A208KLF

Active
Amphenol ICC (FCI)

CONN MICROSPACEXS,1.27MM CRIM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet10155447-311LF+1
10155500-A208KLF - 10155500-A208KLF

10155500-A208KLF

Active
Amphenol ICC (FCI)

CONN MICROSPACEXS,1.27MM CRIM

Deep-Dive with AI

DocumentsDatasheet10155447-311LF+1

Technical Specifications

Parameters and characteristics for this part

Specification10155500-A208KLF
ApplicationsIndustrial, General Purpose, Automotive
Connector TypeHeader
Contact Finish - PostTin
Contact Finish Thickness - Mating118.1 µin
Contact Finish Thickness - Mating3 µm
Contact Finish Thickness - Post0.3 µm
Contact Finish Thickness - Post12 µin
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)4 A
Fastening TypeLatch Holder
FeaturesSolder Retention, Board Guide
Insulation ColorBlack
Insulation Height [z]9.7 mm
Insulation Height [z]0.382 in
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount, Right Angle
Number of Positions8
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]130 °C
Operating Temperature [Min]-40 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating2.43 mm
Row Spacing - Mating0.096 in
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating48 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.90
10$ 1.45
100$ 1.12
Digi-Reel® 1$ 1.90
10$ 1.45
100$ 1.12
Tape & Reel (TR) 240$ 1.03

Description

General part information

10155500 Series

Connector Header Surface Mount, Right Angle 8 position 0.100" (2.54mm)
