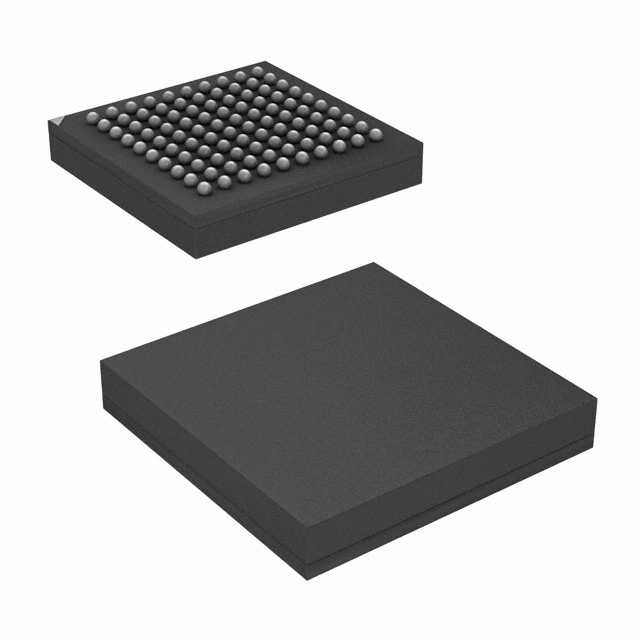

CY8C24994-24BVXI
ObsoleteInfineon Technologies
IC MCU 8BIT 16KB FLASH 100VFBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CY8C24994-24BVXI
ObsoleteInfineon Technologies
IC MCU 8BIT 16KB FLASH 100VFBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CY8C24994-24BVXI |
|---|---|
| Core Processor | M8C |
| Core Size | 8-Bit |
| Data Converters [custom] | 9, 14 |
| Data Converters [custom] | 2 channels, 48 |
| Mounting Type | Surface Mount |
| Number of I/O | 56 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 100-VFBGA |
| Peripherals | POR, PWM, WDT |
| Program Memory Size | 16 KB |
| Program Memory Type | FLASH |
| RAM Size | 1 K |
| Speed | 24 MHz |
| Supplier Device Package | 100-VFBGA (6x6) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.25 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 57 | $ 5.28 | |
| 57 | $ 5.28 | |||
| Tray | 1 | $ 8.80 | ||
| 1 | $ 8.80 | |||
| 10 | $ 7.95 | |||
| 10 | $ 7.95 | |||
| 25 | $ 7.58 | |||
| 25 | $ 7.58 | |||
| 80 | $ 6.58 | |||
| 80 | $ 6.58 | |||
Description
General part information
CY8C24994 Series
M8C PSOC®1 CY8C24xxx Microcontroller IC 8-Bit 24MHz 16KB (16K x 8) FLASH 100-VFBGA (6x6)
