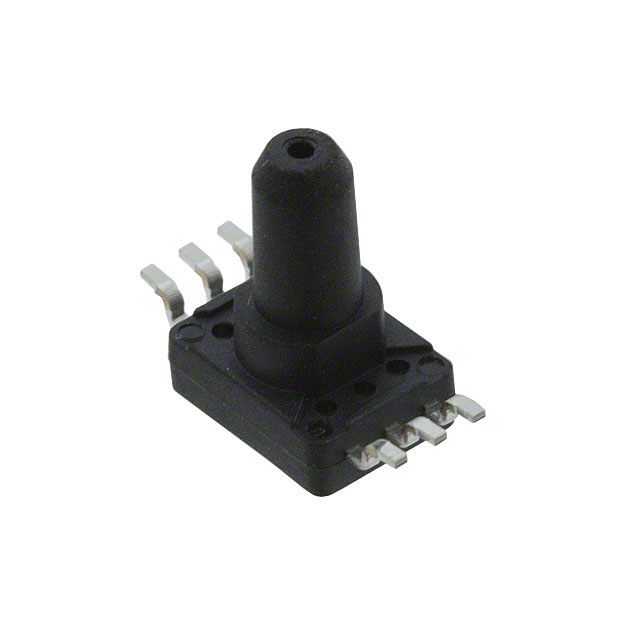

2SMPP03

Active

Omron Electronics Inc-EMC Div

SENSOR 7.25PSIC 0.1" .042V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SENSOR 7.25PSIC 0.1" .042V

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR 5.37PSIG 0.1" .031V

Part	Package / Case	Operating Pressure	Operating Pressure	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Output [Min]	Output [Max]	Output Type	Pressure Type	Port Size	Port Size	Mounting Type	Accuracy	Applications	Maximum Pressure [Min]	Maximum Pressure [Min]
Omron Electronics Inc-EMC Div 2SMPP-02	6-SMD Module	37 kPa	5.37 PSI	Gull Wing	7.69 PSI	53 kPa	Barbless	0 mV	31 mV	Analog Voltage	Vented Gauge	0.1 "	2.59 mm	Surface Mount	0.8 %	Board Mount
Omron Electronics Inc-EMC Div 2SMPP03	6-SMD Module	50 kPa	7.25 PSI	Gull Wing	17.4 PSI	120 kPa	Barbless	-43 mV	42 mV	Analog Voltage	Compound	0.1 "	2.59 mm	Surface Mount	0.5 %	Board Mount	-80 kPa	-11.6 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor ±7.25PSI (±50kPa) Compound Male - 0.1" (2.59mm) Tube -43 mV ~ 42 mV 6-SMD Module
